Smith Bearing® HR-5/8 SMIHR5/8

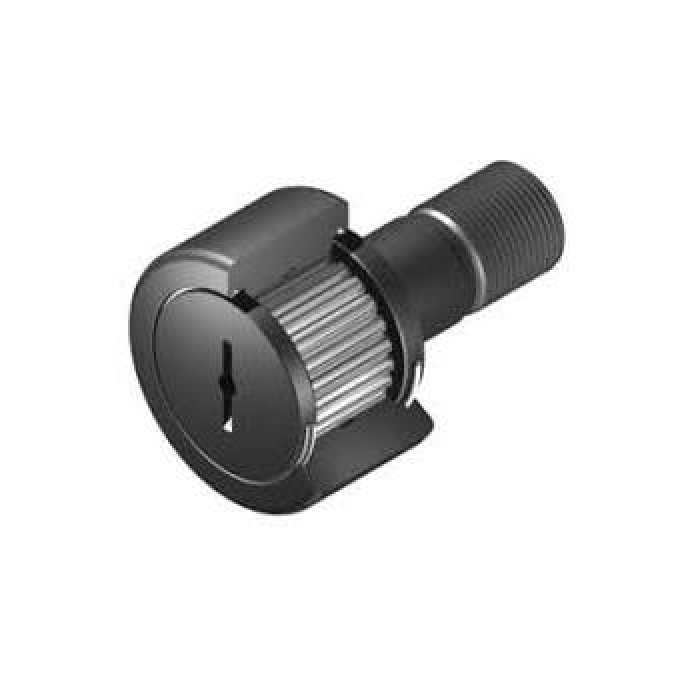

Smith Bearing® HR-5/8 Cylindrical Stud Type Needle Bearing Cam Follower, 5/8 in Dia x 0.437 in W Roller, 5/16 in Dia x 3/4 in L Stud, 52100 Steel Roller
- Manufacturer: ACCURATE BUSHING COMPANY
- Brand Name: Smith Bearing®
- Part Number: SMIHR5/8
- MPN: HR-5/8
- UPC: 651041138865
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The HR Series have a larger diameter stud and are recommended for applications with high running loads and/or heavy shocks where deflection should be held to a minimum. Rollers and outer races are identical to the standard CR Series. Manufactured from high alloy bearing quality steel.
Smith Bearing® Needle Bearing Cam Follower, Cylindrical Stud Type, Series: HR Series, 5/8 in Roller Diameter, 0.437 in Roller Width, 5/16 in Stud Diameter, 3/4 in Stud Length, 5/16-24 UNF-2A Thread, 5/16 in Thread Length, 1210 lb Dynamic/2500 lb Static Load, Heavy Stud, Unsealed Closure, Hex Socket Head, 52100 Steel Roller
| Closure Type | : | Unsealed |
| Head Type | : | Hex Socket |
| Load Capacity | : | 1210 lb Dynamic/2500 lb Static |
| Roller Diameter | : | 5/8 in |
| Roller Material | : | 52100 Steel |
| Roller Width | : | 0.437 in |
| Series | : | HR Series |
| Stud Diameter | : | 5/16 in |
| Stud Length | : | 3/4 in |
| Stud Type | : | Heavy |
| Thread Length | : | 5/16 in |
| Thread Size | : | 5/16-24 UNF-2A |
| Type | : | Cylindrical Stud Type |
