Smith Bearing® HR-2-X SMIHR2X

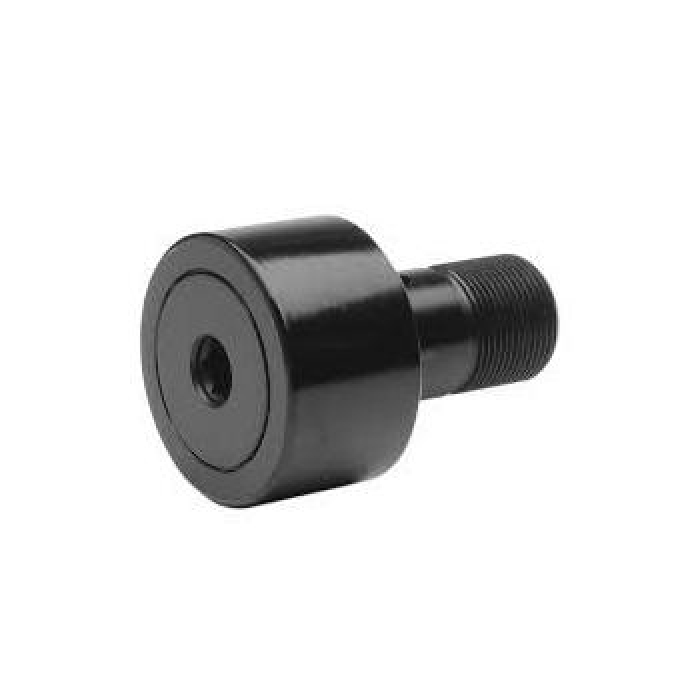

Smith Bearing® HR-2-X Cylindrical Stud Type Needle Bearing Cam Follower, 2 in Dia x 1-1/4 in W Roller, 1-1/8 in Dia x 2 in L Stud, 52100 Steel Roller
- Manufacturer: ACCURATE BUSHING COMPANY
- Brand Name: Smith Bearing®
- Part Number: SMIHR2X
- MPN: HR-2-X
- UPC: 651041131309
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The HR Series have a larger diameter stud and are recommended for applications with high running loads and/or heavy shocks where deflection should be held to a minimum. Rollers and outer races are identical to the standard CR Series. Manufactured from high alloy bearing quality steel.
Smith Bearing® Needle Bearing Cam Follower, Cylindrical Stud Type, Series: HR-X, 2 in Roller Diameter, 1-1/4 in Roller Width, 1-1/8 in Stud Diameter, 2 in Stud Length, 1-1/8-12 UNF-2A Thread, 1 in Thread Length, 10050 lb Dynamic/22000 lb Static Load, Heavy Stud, Sealed Closure, Screwdriver Slot Head, 52100 Steel Roller
| Closure Type | : | Sealed |
| Head Type | : | Screwdriver Slot |
| Load Capacity | : | 10050 lb Dynamic/22000 lb Static |
| Roller Diameter | : | 2 in |
| Roller Material | : | 52100 Steel |
| Roller Width | : | 1-1/4 in |
| Series | : | HR-X |
| Stud Diameter | : | 1-1/8 in |
| Stud Length | : | 2 in |
| Stud Type | : | Heavy |
| Thread Length | : | 1 in |
| Thread Size | : | 1-1/8-12 UNF-2A |
| Type | : | Cylindrical Stud Type |
Full Engineering Drawing
