SMC® KQ2H10-04AS SMCKQ2H10-04AS
  1. pin-int

SMC® KQ2H10-04AS SMCKQ2H10-04AS

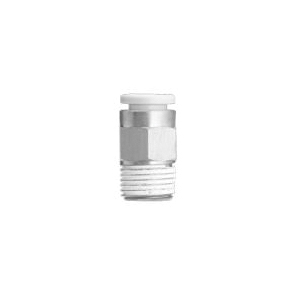

SMC® KQ2H10-04AS KQ2 Tube Connector, 10 mm x R-1/2 Nominal, Male Threaded x Push-In, Brass

  • Manufacturer: SMC Corporation of America
  • Brand Name: SMC®
  • Part Number: SMCKQ2H10-04AS
  • MPN: KQ2H10-04AS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

KQ2 one touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1 MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

SMC® Tube Connector, Series: KQ2, Connector Fitting/Connector, 10 mm x R-1/2 Nominal, Male Threaded x Push-In End Style, 22 mm Hex, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, Brass, 15.6 mm Dia x 22.3 mm L

Dimensions      :      15.6 mm Dia x 22.3 mm L
End Style      :      Male Threaded x Push-In
Fitting/Connector Type      :      Connector
Hex Size      :      22 mm
Material      :      Brass
Nominal Size      :      10 mm x R-1/2
Pressure Rating      :      -100 kPa to 1 MPa
Series      :      KQ2
Temperature Rating      :      -5 to 60 deg C
  • Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
  • Air and water fluid
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This is not intended for use in potable water systems
