NILOS spacer rings are ideal when using a normal locking ring and can promote easier ring mounting. Two styles are offered, type A (for use with externally sealing AV rings) and type J (for use with internally sealing JV rings.) Optimum non-slip clamping can be achieved by matching spacer rings with Seeger® L-rings, which will compensate further for axial play.

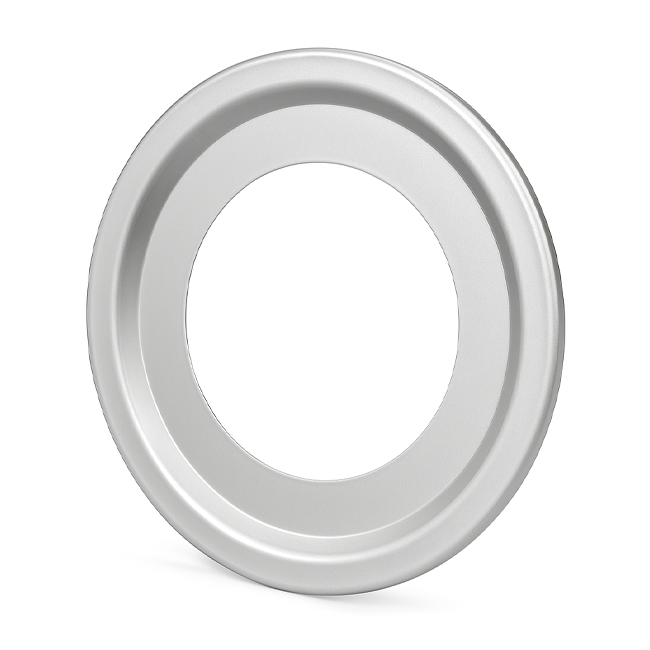

SKF® Nilos Ring, Outer Ring Sealing, Series: 63 Series, 35 mm Inside Dia, 70.7 mm Outside Dia, 2.5 mm Width, 100 deg C, Die-Cast Zinc
| Inside Diameter | : | 35 mm |
| Material | : | Die-Cast Zinc |
| Outside Diameter | : | 70.7 mm |
| Series | : | 63 Series |
| Temperature Rating | : | 100 deg C |
| Type | : | Outer Ring Sealing |
| Width | : | 2.5 mm |
- A-unique design advantage inherent in NILOS spacer rings
- Their width serves to prevent jamming the NILOS-Ring into the groove of the locking ring
- Proper selection of a spacer ring will depend on the diameter of the shaft or housing
