NILOS spacer rings are ideal when using a normal locking ring and can promote easier ring mounting. Two styles are offered, type A (for use with externally sealing AV rings) and type J (for use with internally sealing JV rings.) Optimum non-slip clamping can be achieved by matching spacer rings with Seeger® L-rings, which will compensate further for axial play.

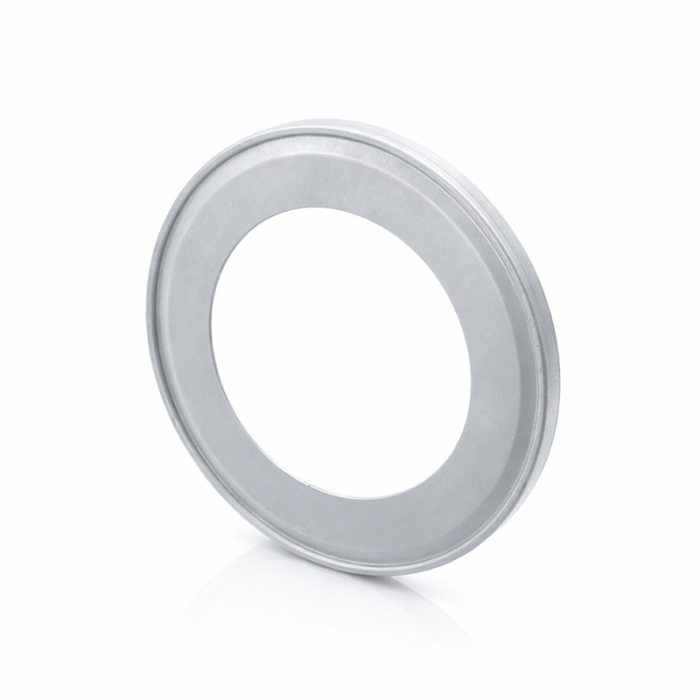

SKF® Nilos Ring, Inner Ring Sealing, Series: 62 Series, 10 mm Inside Dia, 30 mm Outside Dia, 9 mm Width, 100 deg C, Steel
| Inside Diameter | : | 10 mm |
| Material | : | Steel |
| Outside Diameter | : | 30 mm |
| Series | : | 62 Series |
| Temperature Rating | : | 100 deg C |
| Type | : | Inner Ring Sealing |
| Width | : | 9 mm |
- A-unique design advantage inherent in NILOS spacer rings
- Their width serves to prevent jamming the NILOS-Ring into the groove of the locking ring
- Proper selection of a spacer ring will depend on the diameter of the shaft or housing
