SKF® 401800 SKF401800
  1. pin-int

SKF® 401800 SKF401800

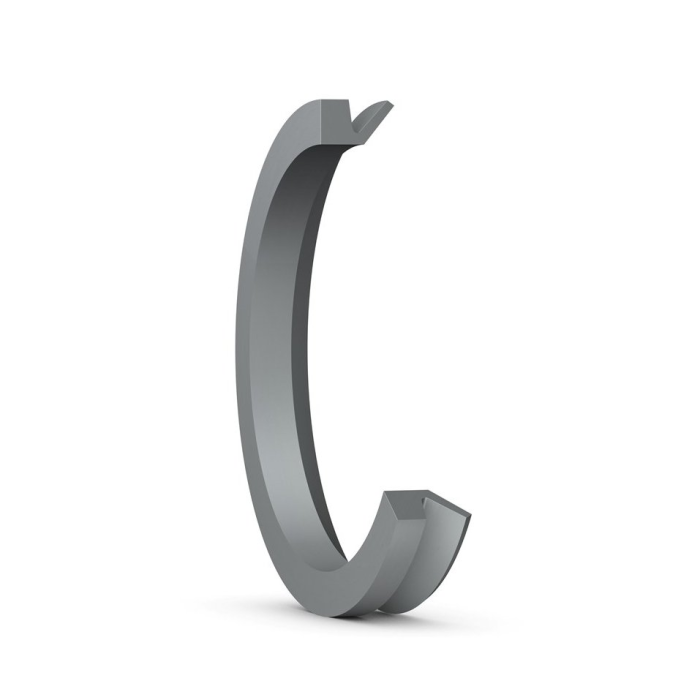

SKF 401800 V-ring seal VR1, NBR

  • Manufacturer: SKF
  • Brand Name: SKF®
  • Part Number: SKF401800
  • MPN: 401800
  • UPC: 85311045339
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

SKF V-ring axial shaft seal used to help exclude contaminants and protect primary seals in rotating shaft applications. Specs: design VR1; material nitrile rubber (NBR); shaft/inside diameter range 7.087 to 7.480 in (180 to 190 mm); cross section 0.472 in (12 mm); seal seat width 0.354 in (9 mm); continuous temperature range -40 to 210 °F; pressure tolerance 4.36 psi; UPC 085311045339; boxed weight 0.372 lb.

Inside Diameter      :      6.89 to 7.283 in
  • V-ring axial shaft seal (V-ring seal)
  • Design: VR1
  • Material: nitrile rubber (NBR)
  • Shaft/ID range: 7.087 to 7.480 in (180 to 190 mm)
  • Cross section: 0.472 in (12 mm)
  • Seal seat width: 0.354 in (9 mm)
  • Continuous temperature range: -40 to 210 °F
  • Pressure tolerance: 4.36 psi
  • UPC: 085311045339
    • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SKF_10049_Catalog.pdf
