SENQCIA 240-2CL MAX240-2CL

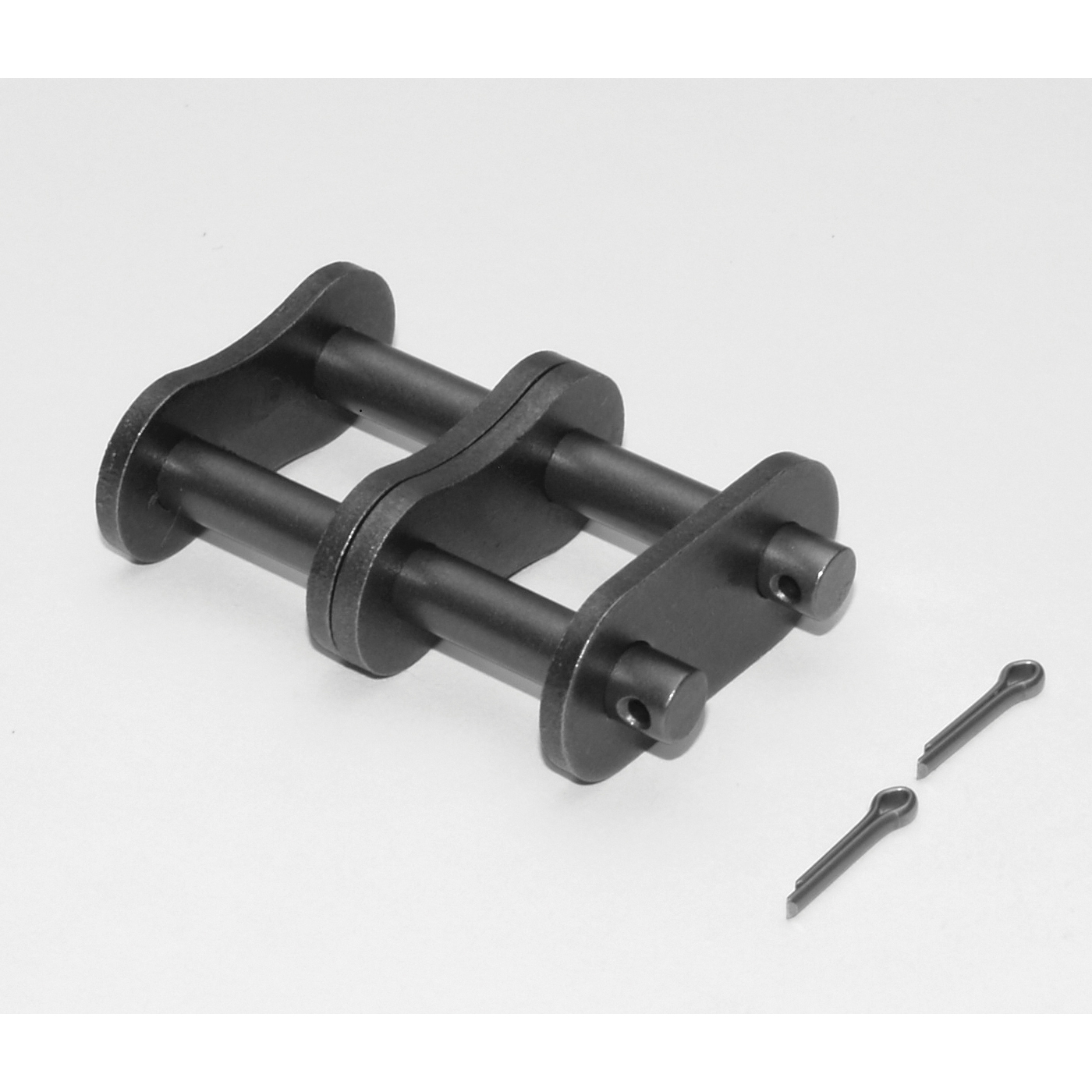

SENQCIA Inspire Series™ SBR® 240-2CL Double Strand Cotter Pin Connecting Link, 240-2 Chain, 3 in Pitch, 7.55 in OAW, 0.936 in Dia Pin, Carbon Steel
- Manufacturer: SENQCIA MAXCO, Ltd.
- Brand Name: SENQCIA
- Part Number: MAX240-2CL
- MPN: 240-2CL
- UPC: 821002009088
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
SENQCIA Inspire Series™ SBR® cottered type connecting links are manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. They offer exceptional performance and long life in a wide variety applications. Long oil field type cotter pins are supplied with slip fit closing plates for ease of assembly in the field. Closing plates are flat style to improve fatigue strength. Connecting links are used to connect the ends of the roller chain strand into an endless loop. Each connecting link is individually packaged in a sealed plastic bag.
SENQCIA Inspire Series™ SBR® Connecting Link, Double Strand Cotter Pin, 240-2 Chain, 3 in Pitch, 7.55 in Overall Width, 0.936 in Pin Dia, 2.768 in Link Plate Height, 0.374 in Link Plate Thickness, Carbon Steel
| Chain Size | : | 240-2 |
| Link Plate Height | : | 2.768 in |
| Link Plate Thickness | : | 0.374 in |
| Material | : | Carbon Steel |
| Overall Width | : | 7.55 in |
| Pin Diameter | : | 0.936 in |
| Pitch | : | 3 in |
| Type | : | Double Strand Cotter Pin |
