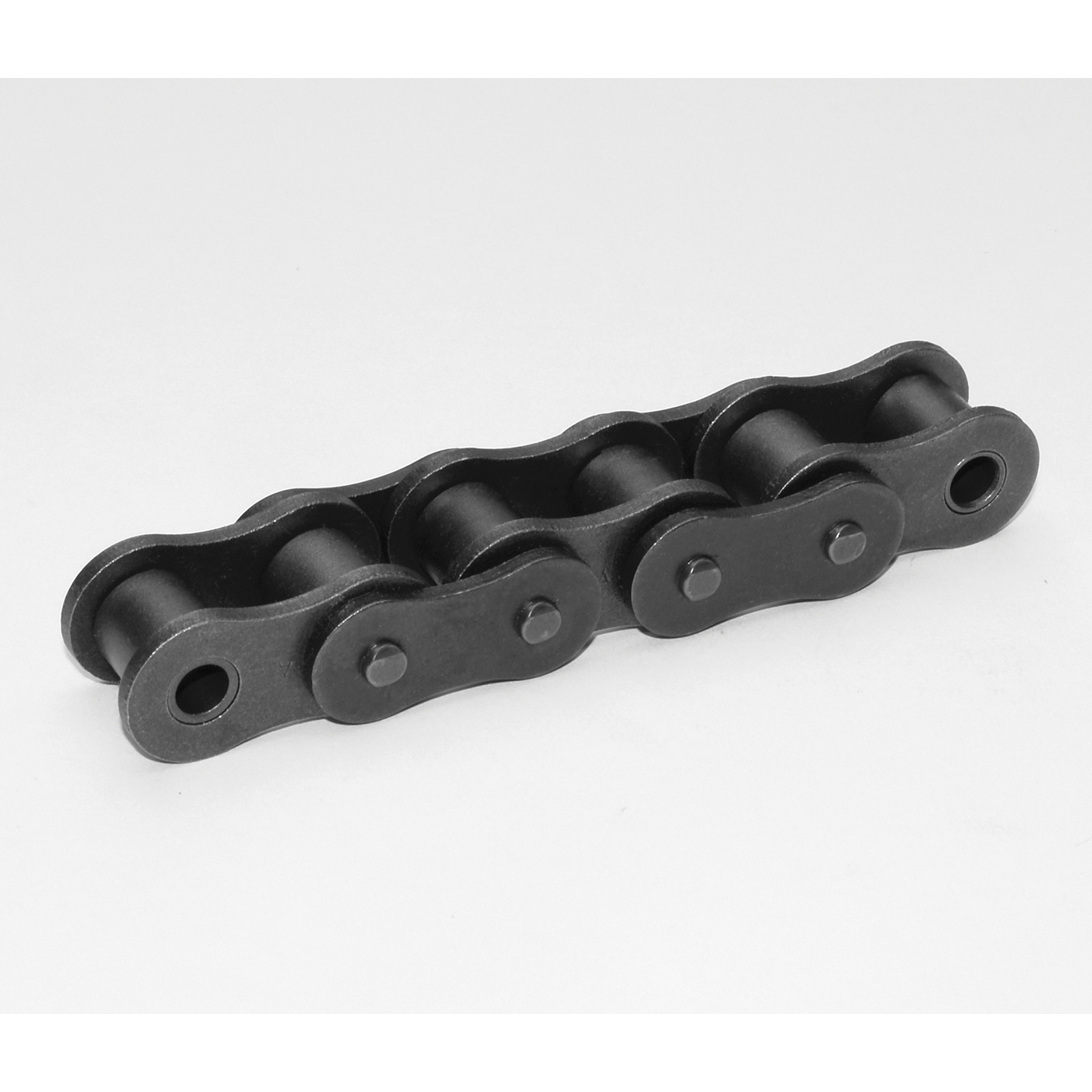

SENQCIA 100HRB MAX100HR-10

SENQCIA Inspire Series™ SBR® Heavy Series riveted roller chain is manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. These solid bushing/solid roller chains offer exceptional performance and long life in a wide variety of applications. The link plates of the Heavy Series are one size thicker than standard roller chains providing additional strength in heavy duty applications. Solid cold forged bushings extend chain wear life and greatly reduce break-in wear. Packaged chains are pre-lubricated with high quality wax-type grease and come with a necessary connecting link to join the ends. Offset links (used to shorten or lengthen a chain strand by 1 pitch) are also available and sold separately. This chain is packaged in a 10 ft box.

SENQCIA Inspire Series™ SBR® Roller Chain, Riveted Standard, Series: Heavy Series, 1-1/4 in Pitch, 3/8 in Pin Dia, 1.67 in Pin Length, 3/4 in Roller Dia, 3/4 in Roller Width, 1.154 in Plate Height, 0.188 in Plate Thickness, 1 Strand, 30800 lb Average Tensile, 10 ft Overall Length, Carbon Steel

• Higher rated working loads
• Improved wear and abrasion resistance
• New boron steel pins for most sizes that increase strength and improve ductility
• Proprietary stainless steel blast for link plates and rollers to protect against rust
• Unique triple zone hardness on chain pins
• Wide waist link plates
• Redesigned high strength connecting link with flat style closing plates
• Superior special blend pre-lubricant

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Senqcia_Maxco_06BHMCL_Catalog.pdf
