Sealmaster® 738969 MORUSFCE5000A-207C
  1. pin-int

Sealmaster® 738969 MORUSFCE5000A-207C

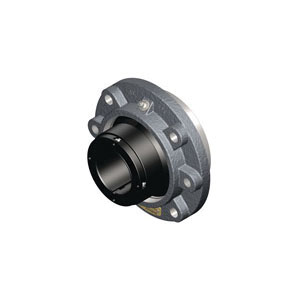

Sealmaster® 738969 USFCE5000A Type E Non-Expansion Round/Straight Bore Unitized Flange Cartridge Spherical Roller Bearing Unit With Seal Flinger, 2-7/16 in Dia Bore, 6-1/2 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 7-5/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORUSFCE5000A-207C
  • Alt Part Number: USFCE5000A-207-C
  • MPN: 738969
  • UPC: 662461358412
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

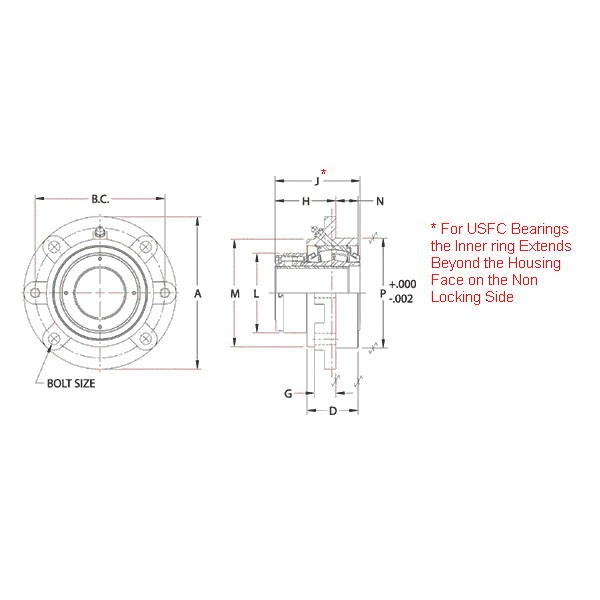

Sealmaster® Unitized Flange Cartridge Spherical Roller Bearing Unit, Type E Non-Expansion Round/Straight Bore, Series: USFCE5000A, 2-7/16 in Bore, 6-1/2 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 7-5/8 in Overall Length/Diameter, 4-5/16 in Overall Depth, Adapter Mounted Locking Device, Ductile Iron Bearing, 44691 lb Dynamic/59535 lb Static Load, 1750 rpm Maximum, 250 deg F, Uncoated

Bearing Material      :      Ductile Iron
Bolt Circle Diameter      :      6-1/2 in
Bore Diameter      :      2-7/16 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt Piloted
Load Capacity      :      44691 lb Dynamic/59535 lb Static
Locking Device      :      Adapter Mounted
Maximum Speed      :      1750 rpm
Overall Depth      :      4-5/16 in
Overall Length/Diameter      :      7-5/8 in
Series      :      USFCE5000A
Temperature Rating      :      250 deg F
Type      :      Type E Non-Expansion Round/Straight Bore
  • Sealmaster® offers an innovative double-row spherical roller bearing, featuring new geometries which provides optimal load capacity, misalignment and speed capability
  • The Sealmaster® double-lip contact seal, mounted between races, can accommodate +/- 2 deg of misalignment
  • The Sealmaster® performance mounted roller bearings grip the shaft with an advanced adapter mount system for fast installation and removal
  • The wide outer race, coupled with innovative rolling element geometries, provides increased load capacity
  • Metal land riding retainer type
  • 52100 black oxide coated steel bearing
  • 1-piece ductile iron housing
