Sealmaster® 738866 MORUSFBE5000A-208
  1. pin-int

Sealmaster® 738866 MORUSFBE5000A-208

Sealmaster® 738866 USFBE5000A Type E Non-Expansion Round/Straight Bore Unitized Flange Block Spherical Roller Bearing Unit With Seal Flinger, 2-1/2 in Dia Bore, 5-3/8 in L Bolt Center-to-Center, 7-19/32 in Dia Bolt Circle, 4-Bolt Flange Mount

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORUSFBE5000A-208
  • Alt Part Number: USFBE5000A-208
  • MPN: 738866
  • UPC: 662461360187
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

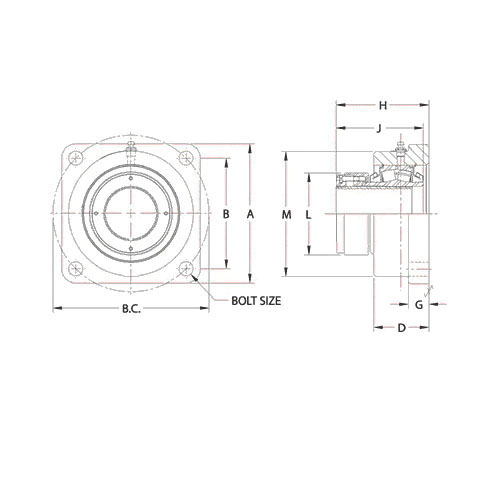

Sealmaster® Unitized Flange Block Spherical Roller Bearing Unit, Type E Non-Expansion Round/Straight Bore, Series: USFBE5000A, 2-1/2 in Bore, 5-3/8 in Bolt Center-to-Center Length, 7-19/32 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 9-1/2 in Overall Length/Diameter, 4-13/32 in Overall Depth, 9-1/2 in Overall Height, Adapter Mounted Locking Device, Ductile Iron Bearing, Felt Seal, 44691 lb Dynamic/59535 lb Static Load, 3250 rpm Maximum, 250 deg F, Uncoated

Bearing Material      :      Ductile Iron
Bolt Center-to-Center Length      :      5-3/8 in
Bolt Circle Diameter      :      7-19/32 in
Bore Diameter      :      2-1/2 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt
Load Capacity      :      44691 lb Dynamic/59535 lb Static
Locking Device      :      Adapter Mounted
Maximum Speed      :      3250 rpm
Overall Depth      :      4-13/32 in
Overall Height      :      9-1/2 in
Overall Length/Diameter      :      9-1/2 in
Seal Material      :      Felt
Series      :      USFBE5000A
Temperature Rating      :      250 deg F
Type      :      Type E Non-Expansion Round/Straight Bore
  • Sealmaster® offers an innovative double-row spherical roller bearing, featuring new geometries which provides optimal load capacity, misalignment and speed capability
  • The Sealmaster® felt seal with flinger, mounted between races, can accommodate +/- 2 deg of misalignment
  • The Sealmaster® performance mounted roller bearings grip the shaft with an advanced adapter mount system for fast installation and removal
  • The wide outer race, coupled with innovative rolling element geometries, provides increased load capacity
  • Metal land riding retainer type
  • 52100 black oxide coated steel bearing
  • 1-piece ductile iron housing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737159_Catalog.pdf
