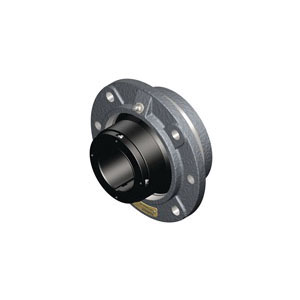

Sealmaster® 737808 MORUSFC5000A-400

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

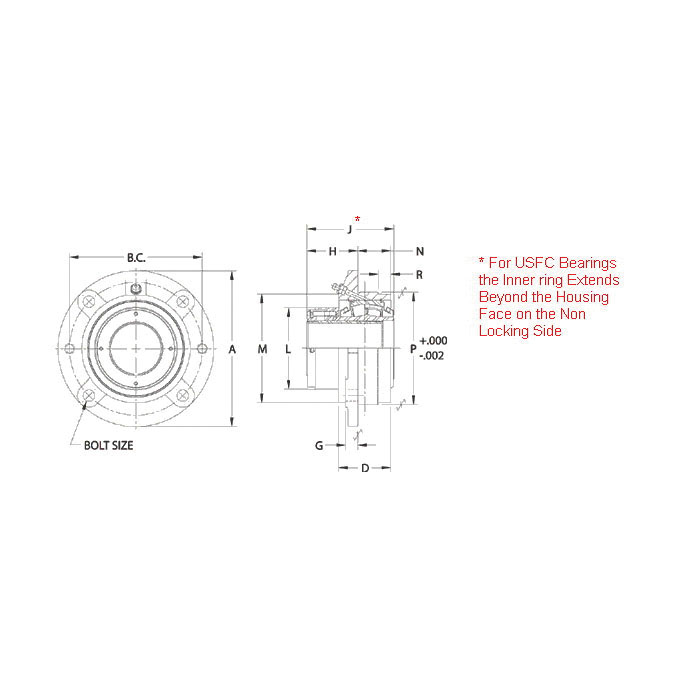

Sealmaster® Unitized Flange Cartridge Spherical Roller Bearing Cartridge Unit, Non-Expansion Round/Straight Bore, Series: USFC5000A, 4 in Bore, 9-3/8 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 10-7/8 in Overall Length/Diameter, 5-15/16 in Overall Depth, Adapter Mounted Locking Device, Cast Iron Bearing, Felt Seal, 96050 lb Dynamic/136151 lb Static Load, 2250 rpm Maximum, 250 deg F, Uncoated

• Item Features 01=Sealmaster® offers an innovative double-row spherical roller bearing, featuring new geometries which provides optimal load capacity, misalignment and speed capability
• Item Features 02=The Sealmaster® double-lip contact seal, mounted between races, can accommodate +/- 2 deg of misalignment
• Item Features 03=The Sealmaster® performance mounted roller bearings grip the shaft with an advanced adapter mount system for fast installation and removal
• Item Features 04=The wide outer race, coupled with innovative rolling element geometries, provides increased load capacity
• Item Features 05=Metal land riding retainer type
• Item Features 06=52100 black oxide coated steel bearing
• Item Features 07=1-piece cast iron housing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737159_Catalog.pdf
