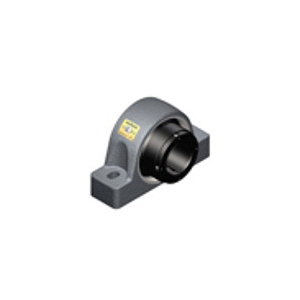

Sealmaster® 737660 MORUSRB5000AE-311

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options as illustrated on the pages to follow.

Sealmaster® Pillow Block Spherical Roller Bearing Unit, Unitized, Series: USRB 5000, 3-11/16 in Bore, 10 to 11-3/4 in Bolt Center-to-Center Length, 4-1/8 in Base to Bore Centerline, 14-1/4 in Overall Length, 5-15/16 in Overall Width, 8-7/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-9/16 in Base Width, Adapter Mounted Locking Device, Felt Seal, Expansion Expansion, 96050 lb Dynamic/136151 lb Static Load, 250 deg F, 2250 rpm Maximum, Cast Iron

• Double row spherical roller bearing
• Split housing
• Replaceable cartridge insert
• Wide outer race
• The arrangement of rolling elements and races in Sealmaster® mounted spherical roller bearings can accommodate +/-2 deg of misalignment
• 52100 black oxide coated steel bearing

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737000_Manual.pdf
