Sealmaster® 737360 MORUSBF5000-107
  1. pin-int

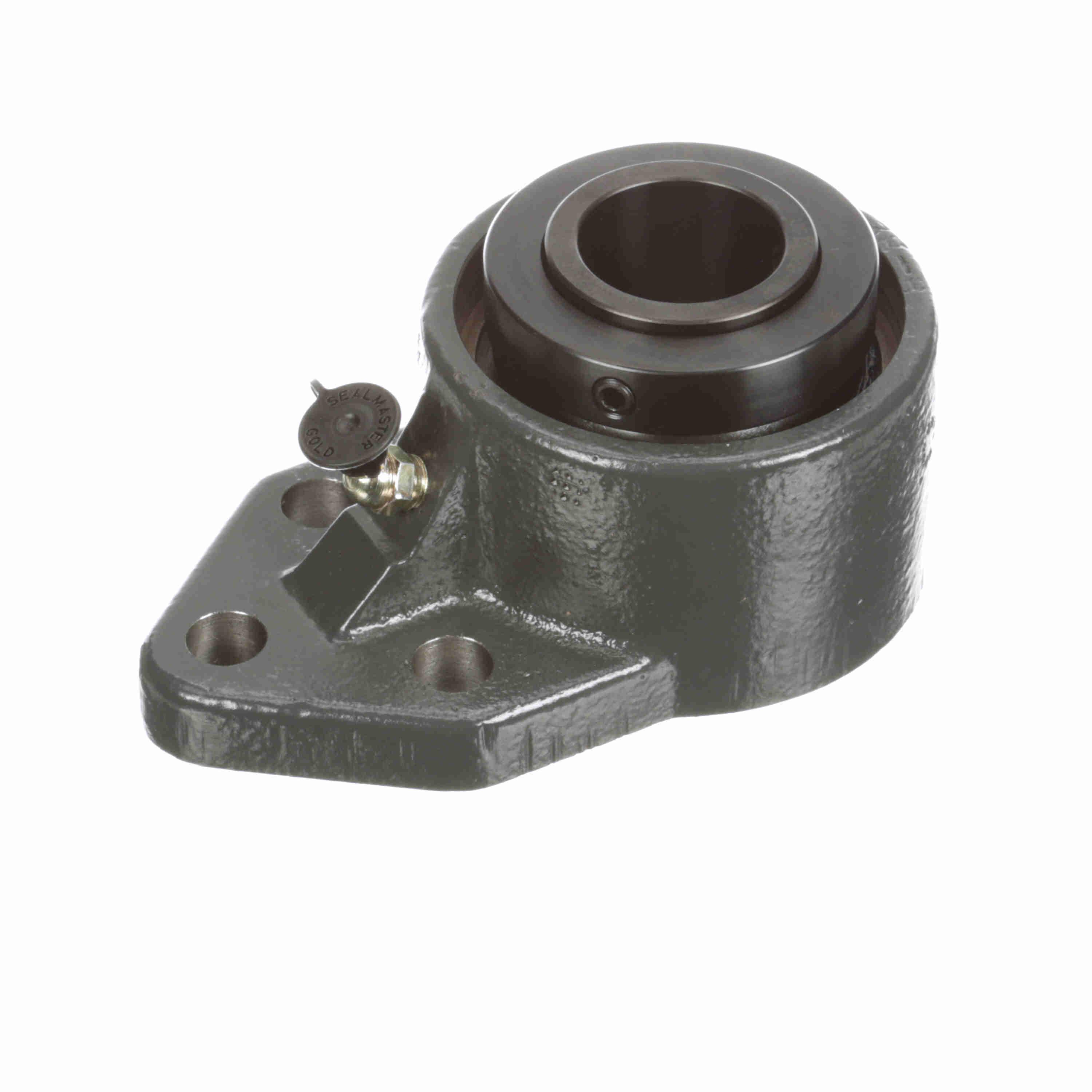

Sealmaster® 737360 MORUSBF5000-107

Sealmaster® 737360 USBF5000 Non-Expansion Round/Straight Bore Unitized Flange Block Spherical Roller Bearing Unit With Seal Flinger, 1-7/16 in Dia Bore, 2 in L Bolt Center-to-Center, 3-Bolt Bracket Flange Mount, 3-3/4 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORUSBF5000-107
  • Alt Part Number: USBF5000-107
  • MPN: 737360
  • UPC: 662461362952
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

Sealmaster® Unitized Flange Block Spherical Roller Bearing Unit, Non-Expansion Round/Straight Bore, Series: USBF5000, 1-7/16 in Bore, 2 in Bolt Center-to-Center Length, 3-Bolt Bracket Flange Mounting, 3-3/4 in Overall Length/Diameter, 2-53/64 in Overall Depth, 6-1/8 in Overall Height, Collar Mount/Setscrew Locking Device, Ductile Iron Bearing, Felt Seal, 20368 lb Dynamic/23609 lb Static Load, 4000 rpm Maximum, 250 deg F, Uncoated

Bearing Material      :      Ductile Iron
Bolt Center-to-Center Length      :      2 in
Bore Diameter      :      1-7/16 in
Finish      :      Uncoated
Flange Mounting Type      :      3-Bolt Bracket
Load Capacity      :      20368 lb Dynamic/23609 lb Static
Locking Device      :      Collar Mount/Setscrew
Maximum Speed      :      4000 rpm
Overall Depth      :      2-53/64 in
Overall Height      :      6-1/8 in
Overall Length/Diameter      :      3-3/4 in
Seal Material      :      Felt
Series      :      USBF5000
Temperature Rating      :      250 deg F
Type      :      Non-Expansion Round/Straight Bore
  • Sealmaster® offers an innovative double-row spherical roller bearing, featuring new geometries which provides optimal load capacity, misalignment and speed capability
  • The Sealmaster® felt seal with flinger, mounted between races, can accommodate +/- 2 deg of misalignment
  • The Sealmaster® performance mounted roller bearings feature locking collars and setscrews at 120 deg, providing a balanced 3-point contact
  • Metal land riding retainer type
  • 52100 black oxide coated steel bearing
  • Wide race and rollers and steel cage for high dynamic load ratings
  • Powder coat epoxy cast iron housing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737364_Catalog.pdf
