Sealmaster® 737291 MORUSFC5000-307C
  1. pin-int

Sealmaster® 737291 MORUSFC5000-307C

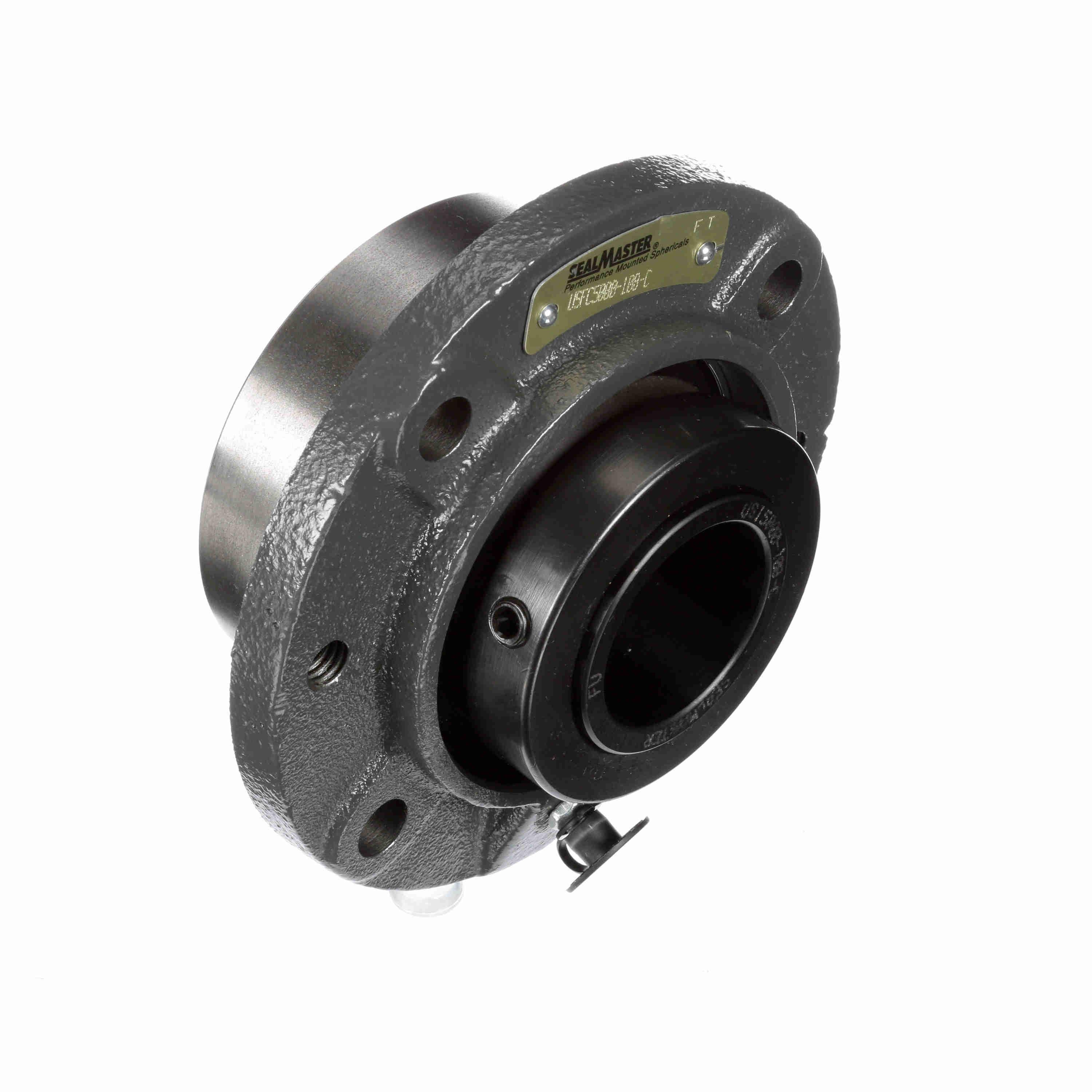

Sealmaster® 737291 USFC5000 Non-Expansion Round/Straight Bore Unitized Flange Cartridge Spherical Roller Bearing Cartridge Unit With Seal Flinger, 3-7/16 in Dia Bore, 8-5/8 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 10-1/4 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORUSFC5000-307C
  • MPN: 737291
  • UPC: 662461362389
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

Sealmaster® Unitized Flange Cartridge Spherical Roller Bearing Cartridge Unit, Non-Expansion Round/Straight Bore, Series: USFC5000, 3-7/16 in Bore, 8-5/8 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 10-1/4 in Overall Length/Diameter, 4-15/32 in Overall Depth, Collar Mount/Set Screw Locking Device, Cast Iron Bearing, 72640 lb Dynamic/105628 lb Static Load, 1350 rpm Maximum, 250 deg F, Uncoated

Bearing Material      :      Cast Iron
Bolt Circle Diameter      :      8-5/8 in
Bore Diameter      :      3-7/16 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt Piloted
Load Capacity      :      72640 lb Dynamic/105628 lb Static
Locking Device      :      Collar Mount/Set Screw
Maximum Speed      :      1350 rpm
Overall Depth      :      4-15/32 in
Overall Length/Diameter      :      10-1/4 in
Series      :      USFC5000
Temperature Rating      :      250 deg F
Type      :      Non-Expansion Round/Straight Bore
  • Sealmaster® offers an innovative double-row spherical roller bearing, featuring new geometries which provides optimal load capacity, misalignment and speed capability
  • The Sealmaster® double-lip contact seal, mounted between races, can accommodate +/- 2 deg of misalignment
  • The Sealmaster® performance mounted roller bearings feature locking collars and setscrews at 120 deg, providing a balanced 3-point contact
  • Metal land riding retainer type
  • 52100 black oxide coated steel bearing
  • Wide race and rollers and steel cage for high dynamic load ratings
  • Powder coat epoxy cast iron housing
