Sealmaster® 737263 MORUSFC5000-107C

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

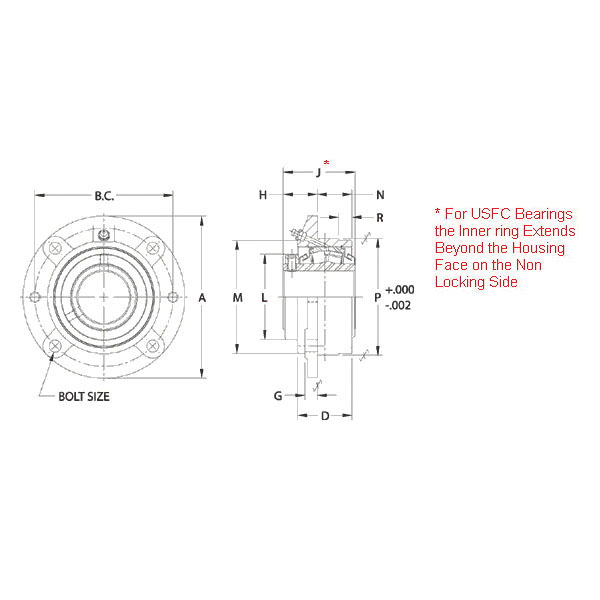

Sealmaster® Unitized Flange Cartridge Spherical Roller Bearing Cartridge Unit, Non-Expansion Round/Straight Bore, Series: USFC5000, 1-7/16 in Bore, 4-3/8 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 5-1/4 in Overall Length/Diameter, 2-3/4 in Overall Depth, Collar Mount/Set Screw Locking Device, Cast Iron Bearing, 20368 lb Dynamic/23609 lb Static Load, 3000 rpm Maximum, 250 deg F, Uncoated

• The wide outer race, coupled with innovative rolling element geometries, provides increased load capacity
• Metal land riding retainer type
• Wide race and rollers and steel cage for high dynamic load ratings
• Race-mounted double-lip contact seal with flinger and misalignment sealing
• Single-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy cast iron housing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737262_Catalog.pdf
