Sealmaster® 737193 MORUSFB5000-315C
  1. pin-int

Sealmaster® 737193 MORUSFB5000-315C

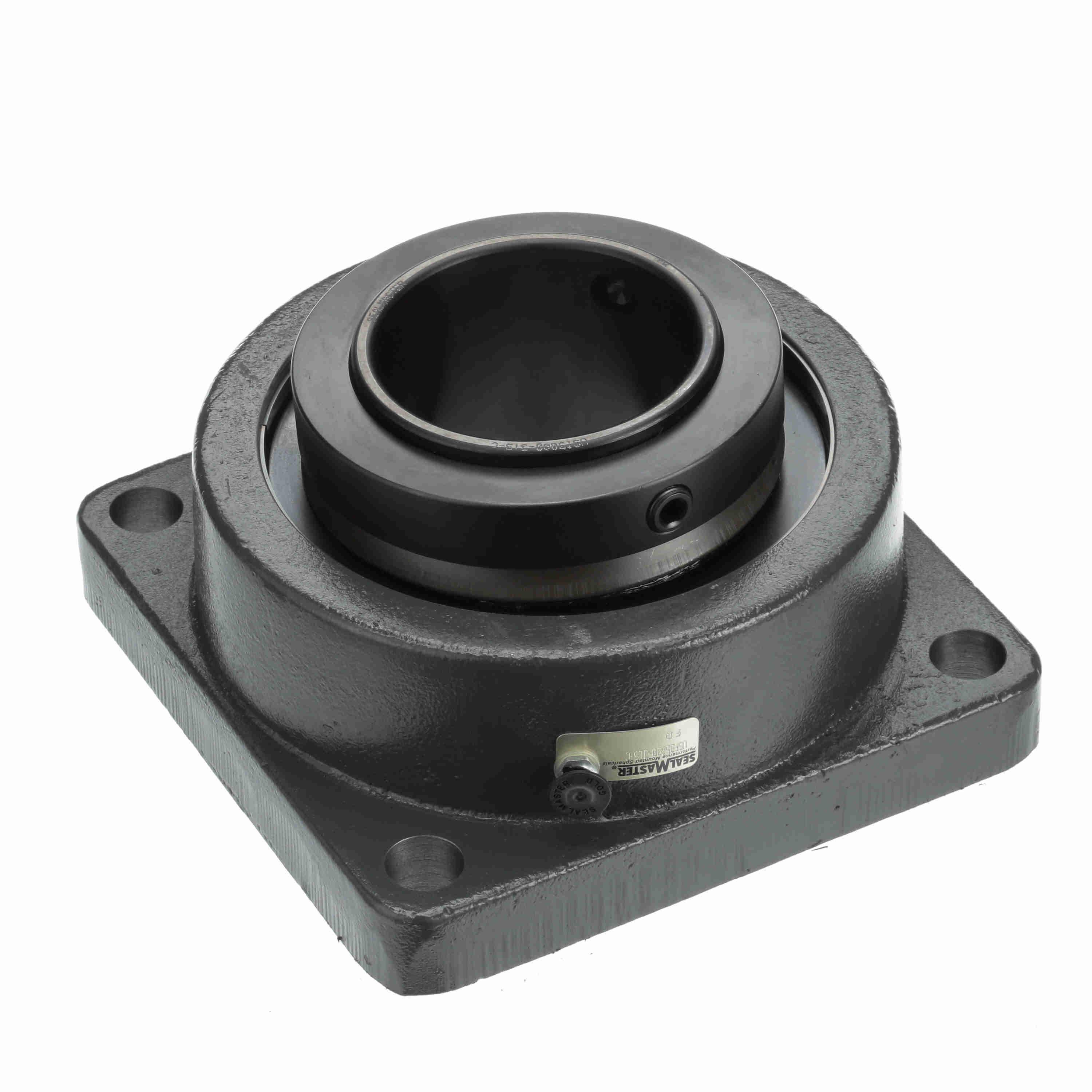

Sealmaster® 737193 USFB5000 Non-Expansion Round/Straight Bore Unitized Spherical Roller Bearing Unit, 3-15/16 in Dia Bore, 7-19/32 in L Bolt Center-to-Center, 10-3/4 in Dia Bolt Circle, 4-Bolt Flange Mount, 9-1/2 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORUSFB5000-315C
  • Alt Part Number: USFB5000-315-C
  • MPN: 737193
  • UPC: 662461361528
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

Sealmaster® Unitized Spherical Roller Bearing Unit, Non-Expansion Round/Straight Bore, Series: USFB5000, 3-15/16 in Bore, 7-19/32 in Bolt Center-to-Center Length, 10-3/4 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 9-1/2 in Overall Length/Diameter, 5-5/64 in Overall Depth, 9-1/2 in Overall Height, Collar Mount/Set Screw Locking Device, Cast Iron Bearing, 96050 lb Dynamic/136151 lb Static Load, 1200 rpm Maximum, -20 to 220 deg F, Uncoated

Bearing Material      :      Cast Iron
Bolt Center-to-Center Length      :      7-19/32 in
Bolt Circle Diameter      :      10-3/4 in
Bore Diameter      :      3-15/16 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt
Load Capacity      :      96050 lb Dynamic/136151 lb Static
Locking Device      :      Collar Mount/Set Screw
Maximum Speed      :      1200 rpm
Overall Depth      :      5-5/64 in
Overall Height      :      9-1/2 in
Overall Length/Diameter      :      9-1/2 in
Series      :      USFB5000
Temperature Rating      :      -20 to 220 deg F
Type      :      Non-Expansion Round/Straight Bore
  • Sealmaster® performance mounted roller bearings feature locking collars and setscrews at 120 deg, providing a balanced 3-point contact
  • The wide outer race, coupled with innovative rolling element geometries, provides increased load capacity
  • Retainer metal
  • 52100 black oxide coated steel bearing
  • Wide race and rollers and steel cage for high dynamic load ratings
  • Race-mounted double-lip contact seal with flinger and misalignment sealing
  • Single-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
  • Powder coat epoxy cast iron housing
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737158_Specification_Sheet.pdf
