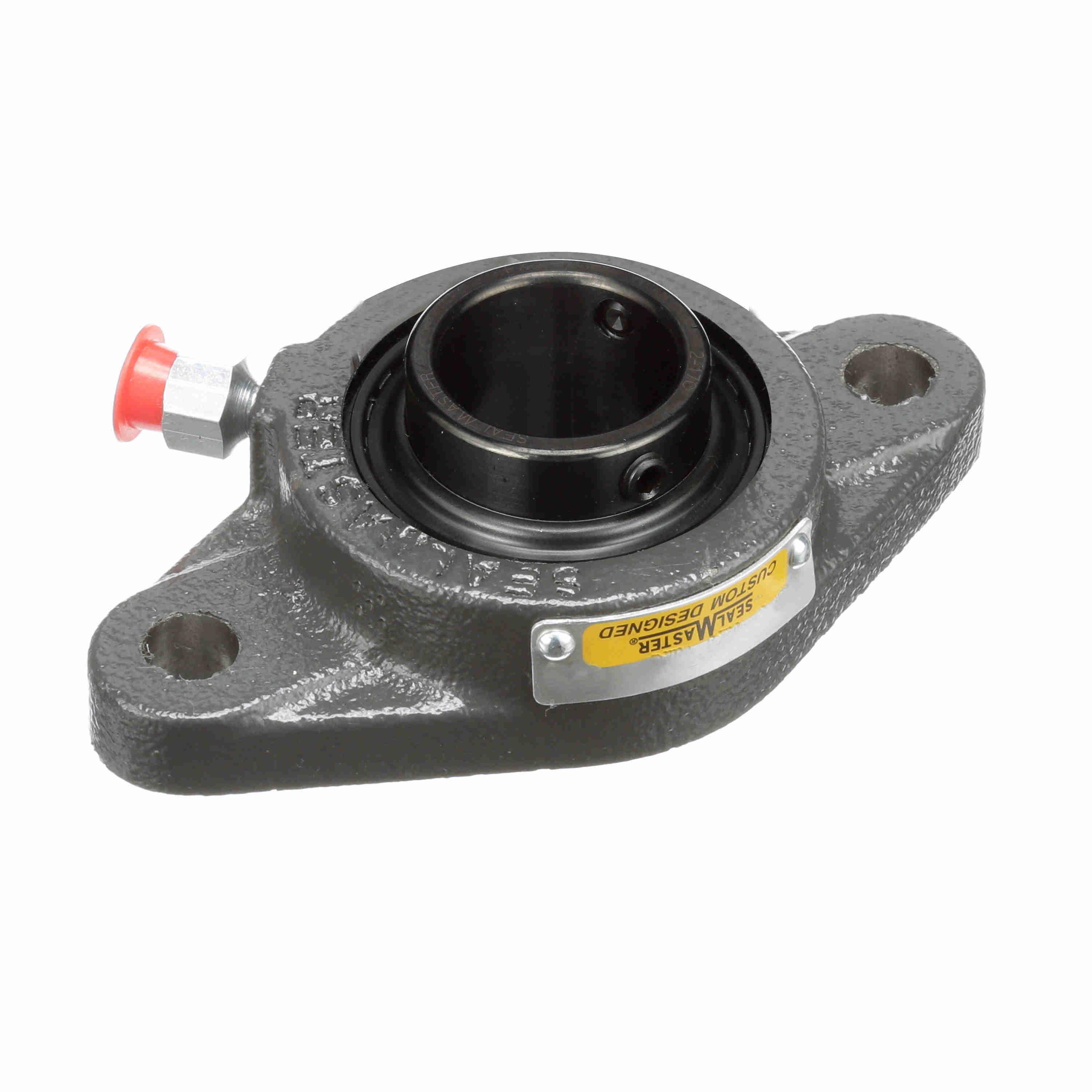

Sealmaster® 724984 MORSFT12LO

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

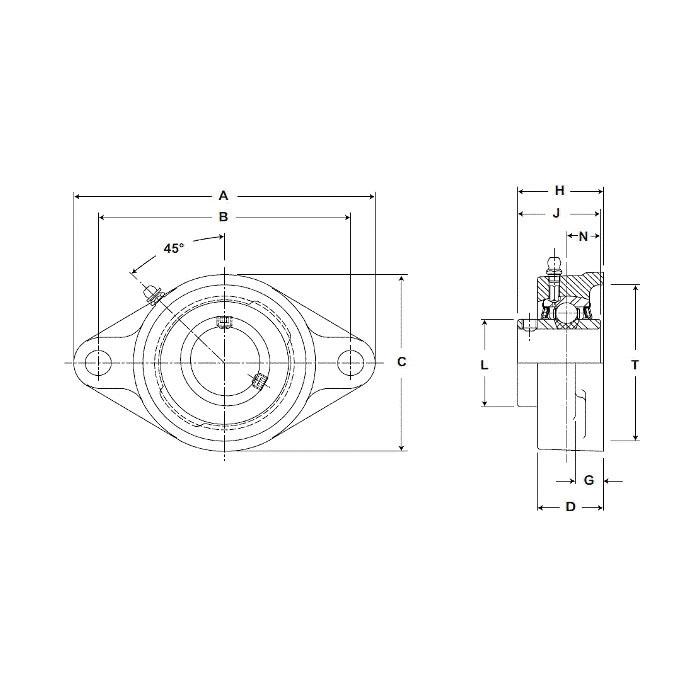

Sealmaster® Ball Bearing Unit, Non-Expansion Round Bore Standard-Duty, Series: SFT, 3/4 in Bore, 3-17/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-13/32 in Overall Length/Diameter, 1-9/32 in Overall Depth, 2-3/8 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Felt Seal, 2611 lb Dynamic/1444 lb Static Load, 180 deg F, Uncoated

• Wide outer race
• Lock pin and dimple system
• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Zone hardened inner race
• Land riding retainer
• Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• +/- 2 deg static misalignment
• Cast iron housing
• Wide black oxided outer ring with direct lubrication inlet hole
• Wide zone hardened inner ring
• Channeling grease (5% of cavity) lubrication

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_703544_Catalog.pdf
