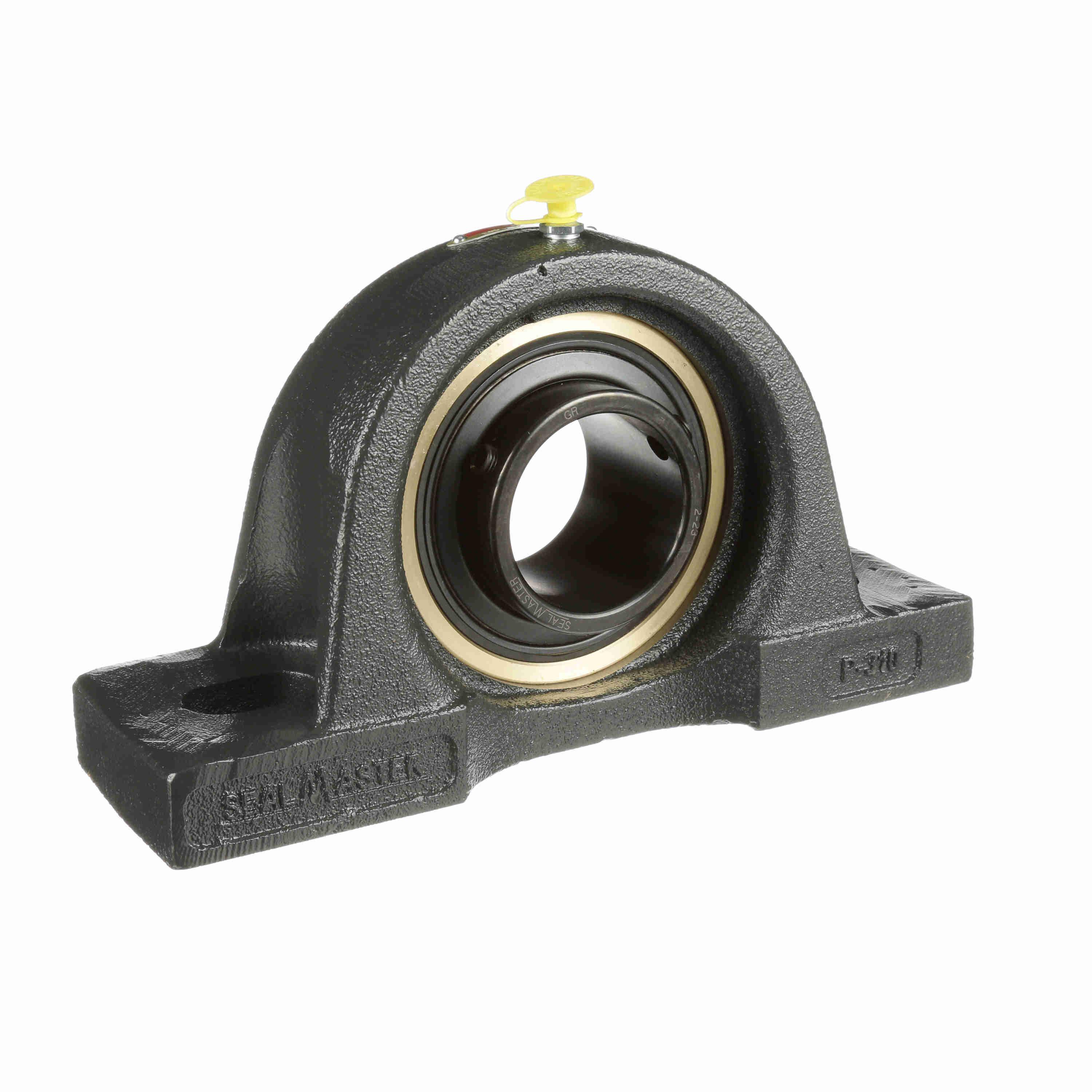

Sealmaster® 724002 MOREMP23HT
Sealmaster® 724002 EMP 1-Piece Medium Duty Pillow Block Ball Bearing, 1.438 in Dia Bore, 5 to 6-3/8 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 8 in OAL x 4.188 in OAH
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MOREMP23HT
- Alt Part Number: EMP-23 HT
- MPN: 724002
- UPC: 662461312858
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® Pillow Block Ball Bearing, 1-Piece Medium Duty, Series: EMP, 1.438 in Bore Dia, 5 to 6-3/8 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 8 in Overall Length, 1-15/16 in Overall Width, 4.188 in Overall Height, Two-Bolt Base Mount, Straight Bore Type, 2-1/4 in Base Width, Set Screw Locking Device, Nomex® Labyrinth Seal, Expansion, 4467 lb Static/7340 lb Dynamic, 400 deg F, 2200 rpm Maximum, 52100 Steel, Black Oxide
| Base Width | : | 2-1/4 in |
| Base to Bore Centerline | : | 2-1/8 in |
| Bolt Center-to-Center Length | : | 5 to 6-3/8 in |
| Bore Diameter | : | 1.438 in |
| Bore Type | : | Straight |
| Expansion Type | : | Expansion |
| Finish | : | Black Oxide |
| Load Capacity | : | 4467 lb Static/7340 lb Dynamic |
| Locking Device | : | Set Screw |
| Material | : | 52100 Steel |
| Maximum Speed | : | 2200 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 4.188 in |
| Overall Length | : | 8 in |
| Overall Width | : | 1-15/16 in |
| Seal Type | : | Nomex® Labyrinth |
| Series | : | EMP |
| Temperature Rating | : | 400 deg F |
| Type | : | 1-Piece Medium Duty |
- Epoxy powder coated cast iron housing, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120 deg spacing set screw locking with diamond faceted set screws
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster® exclusive lock and pin dimple for direct lubrication and anti-rotation
