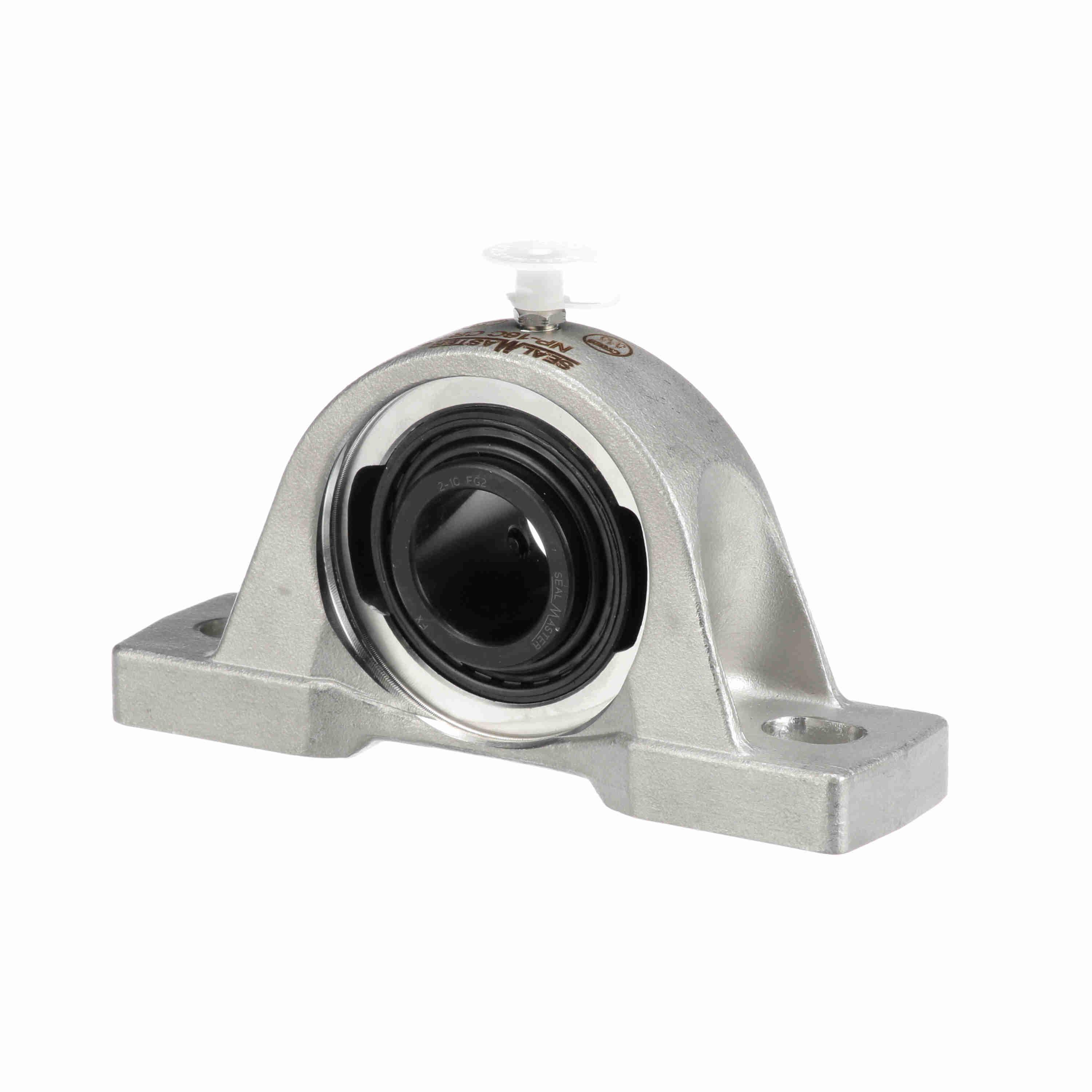

Sealmaster® 723522 MORNP22CCR

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.

Sealmaster® Pillow Block Ball Bearing Unit, Standard-Duty, Series: NP Series, 1-3/8 in Bore, 4-11/16 to 5-5/16 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 6-9/16 in Overall Length, 1-11/16 in Overall Width, 3-3/4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-7/8 in Base Width, Set Screw Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 5782 lb Dynamic Load, 250 deg F, 4650 rpm Maximum, Stainless Steel, Uncoated

• Wide outer ring
• Lock pin and dimple
• Zone hardened inner race
• Land riding retainer
• Housing fit
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Corrosion resistant
• GoldPlex®-FG grease
• Alemite fitting lubrication
• 52100 black oxide coated steel insert

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_762149_Manual.pdf
