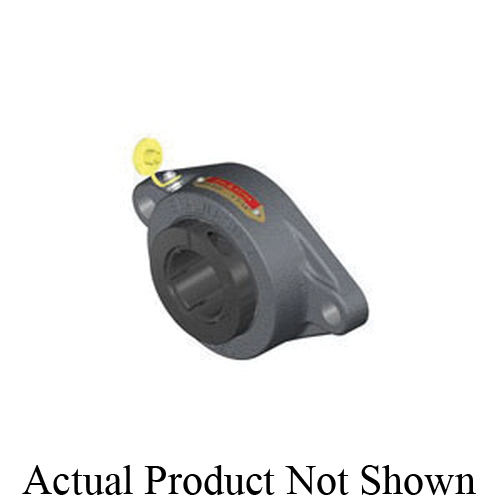

Sealmaster® 722576 MORSFT20TCTY

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Standard Duty, Series: SFT, 1-1/4 in Bore, 5-1/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-13/16 in Overall Depth, 6-1/8 in Overall Height, Skwezloc® Locking Locking Device, Steel Bearing, Felt Seal, 5782 lb Dynamic/3493 lb Static Load, 6500 rpm Maximum, -20 to 200 deg F, Uncoated

• Wide outer ring
• Lock pin and dimple system
• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Zone hardened inner race
• Land riding retainer
• GoldPlex-HP lubrication
• 52100 black oxide coated steel bearing
• Stamped steel rubber mounted flange
• Solid cast iron housing
• Plugged lubed hole

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3200ZZ_Manual.pdf
