Sealmaster® 720360 MORSEHB16TC

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.

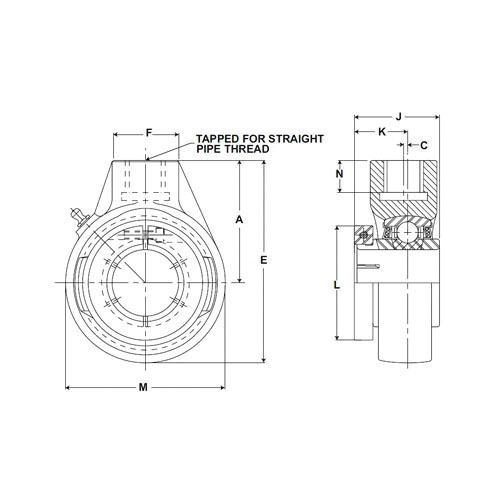

Sealmaster® Hanger Ball Bearing Unit, Standard-Duty, Series: SEHB, 1 in Bore, 3.13 in OD, 1.56 in Width, 4381 lb Dynamic/2567 lb Static Load, Skwezloc® Concentric Collar Locking, Cast Iron Bearing, Nitrile Rubber Seal, Metal Cage, 5450 rpm Maximum, 250 deg F, Uncoated

• Wide outer race
• Lock pin and dimple system
• Zone hardened inner race
• Metal land riding retainer type
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
• Ball bearing rolling element
• Without seal flinger
• Contact seal type

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700347_Catalog.pdf
