Sealmaster® 717347 MORMP23CXU
  1. pin-int

Sealmaster® 717347 MORMP23CXU

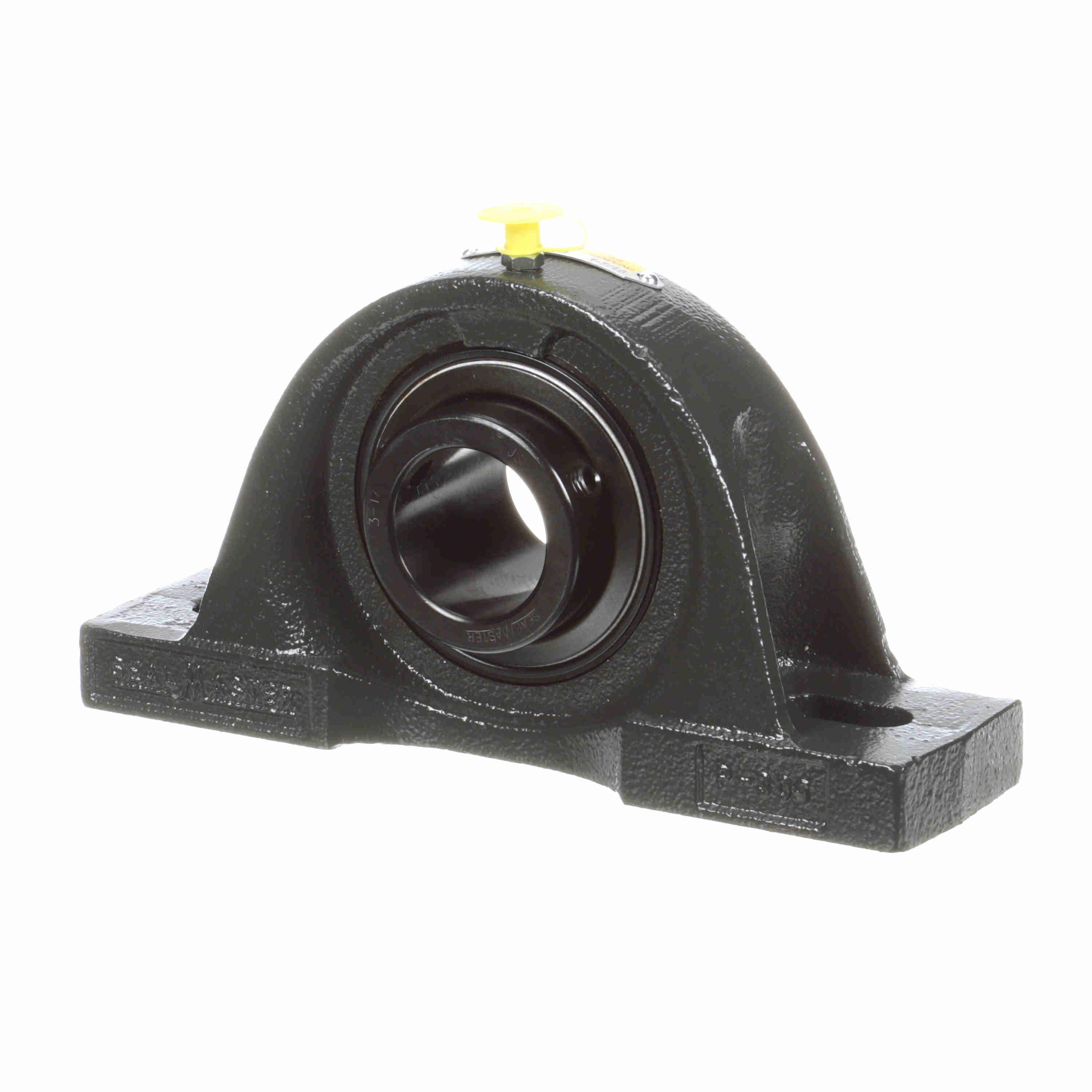

Sealmaster® 717347 MP Series Medium Duty Pillow Block Ball Bearing Unit, 1-7/16 in Dia Bore, 5 to 6-3/8 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 8 in OAL x 4-3/16 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORMP23CXU
  • Alt Part Number: MP-23 CXU
  • MPN: 717347
  • UPC: 662461093955
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.

Sealmaster® Pillow Block Ball Bearing Unit, Medium Duty, Series: MP Series, 1-7/16 in Bore, 5 to 6-3/8 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 8 in Overall Length, 1-15/16 in Overall Width, 4-3/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/4 in Base Width, Set Screw Locking Device, Felt Seal, Non-Expansion (Fixed) Expansion, 7340 lb Dynamic Load, -40 to 200 deg F, 4150 rpm Maximum, Cast Iron, Uncoated

Base Width      :      2-1/4 in
Base to Bore Centerline      :      2-1/8 in
Bolt Center-to-Center Length      :      5 to 6-3/8 in
Bore Diameter      :      1-7/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Uncoated
Load Capacity      :      7340 lb Dynamic
Locking Device      :      Set Screw
Material      :      Cast Iron
Maximum Speed      :      4150 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      4-3/16 in
Overall Length      :      8 in
Overall Width      :      1-15/16 in
Seal Type      :      Felt
Series      :      MP Series
Temperature Rating      :      -40 to 200 deg F
Type      :      Medium Duty
  • Wide outer ring
  • Metal nameplate riveted to the housing allows for easy identification even after years of operation
  • GoldPlex®-HP grease
  • Alemite fitting lubrication
  • 52100 black oxide coated steel bearing
  • Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews Air
  • Handling noise check for quiet operation
  • Looser than standard housing fit for ease of alignment on lightweight frames
  • Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
  • Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_701889_Specification_Sheet.pdf
