Sealmaster® 716188 MORFB16CRM
  1. pin-int

Sealmaster® 716188 MORFB16CRM

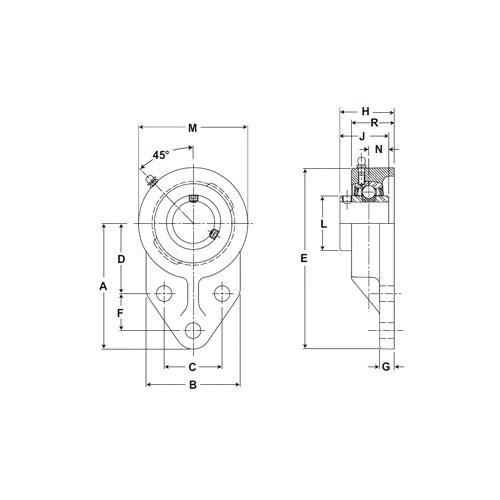

Sealmaster® 716188 FB Series Non-Expansion Standard-Duty Round/Straight Bore Ball Bearing Unit, 1 in Dia Bore, 1-5/8 in L Bolt Center-to-Center, 3-Bolt Flange Mount, 2-3/4 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORFB16CRM
  • Alt Part Number: FB-16C RM
  • MPN: 716188
  • UPC: 662461333396
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

Sealmaster® Ball Bearing Unit, Non-Expansion Standard-Duty Round/Straight Bore, Series: FB Series, 1 in Bore, 1-5/8 in Bolt Center-to-Center Length, 3-Bolt Flange Mounting, 2-3/4 in Overall Length/Diameter, 1-1/2 in Overall Depth, 4-3/4 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 6350 rpm Maximum, -20 to 220 deg F, Uncoated

Bearing Material      :      52100 Steel
Bolt Center-to-Center Length      :      1-5/8 in
Bore Diameter      :      1 in
Finish      :      Uncoated
Flange Mounting Type      :      3-Bolt
Load Capacity      :      2801 lb Dynamic/1651 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      6350 rpm
Overall Depth      :      1-1/2 in
Overall Height      :      4-3/4 in
Overall Length/Diameter      :      2-3/4 in
Seal Material      :      Nitrile Rubber
Series      :      FB Series
Temperature Rating      :      -20 to 220 deg F
Type      :      Non-Expansion Standard-Duty Round/Straight Bore
  • Item Features 01=Wide outer race
  • Item Features 02=Lock pin and dimple system
  • Item Features 03=Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
  • Item Features 04=Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
  • Item Features 05=Zone hardened inner race
  • Item Features 06=Land riding retainer
  • Item Features 07=Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
  • Item Features 08=All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
  • Item Features 09=Metal nameplate riveted to the housing allows for easy identification even after years of operation
  • Item Features 10=+/- 2 deg static misalignment
  • Item Features 11=Cast iron housing
  • Item Features 12=Wide black oxided outer ring with direct lubrication inlet hole
  • Item Features 13=Wide zone hardened inner ring
  • Item Features 14=GoldPlex® HP grease lubrication
