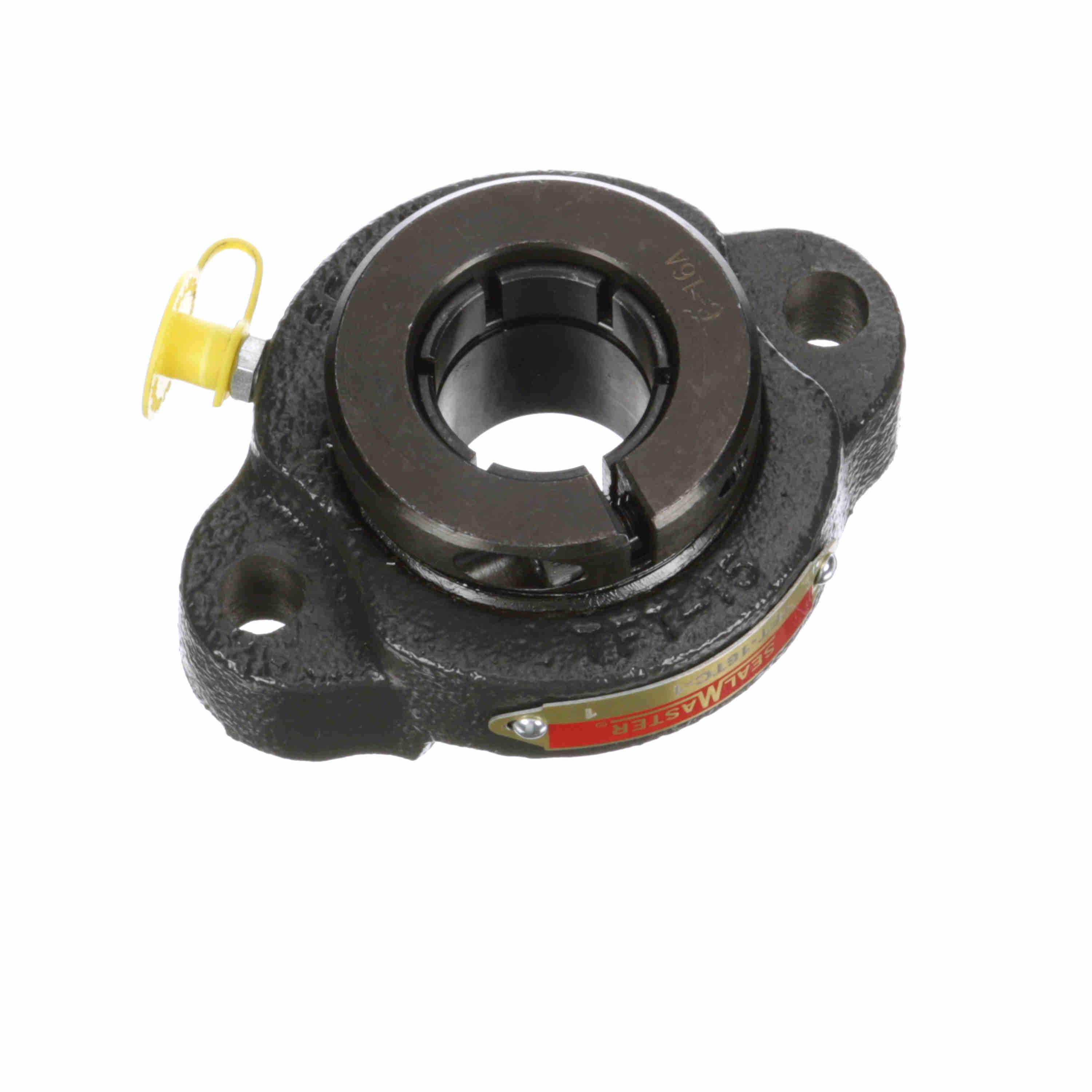

Sealmaster® 715883 MORTFT16T

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

Sealmaster® Ball Bearing Unit, Non-Expansion Round Bore Standard Duty, Series: TFT-T, 1 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-1/2 in Overall Depth, 2-3/4 in Overall Height, Skwezloc® Collar Locking Device, 52100 Steel Bearing, Felt Seal, 2801 lb Dynamic Load, 220 deg F, Uncoated

• Item Features 01=Wide outer race
• Item Features 02=Lock pin and dimple system
• Item Features 03=The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Item Features 04=Skwezloc® is a concentric collar clamp design that results in near perfect concentricity of the shaft to the bearing bore
• Item Features 05=Zone hardened inner race
• Item Features 06=Land riding retainer
• Item Features 07=Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
• Item Features 08=All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Item Features 09=Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Item Features 10=+/- 2 deg static misalignment
• Item Features 11=Cast iron housing
• Item Features 12=Wide black oxided outer ring with direct lubrication inlet hole
• Item Features 13=Wide zone hardened inner ring
• Item Features 14=GoldPlex® HP lubrication

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700495_Catalog.pdf
