Sealmaster® 715813 MORSF20RM

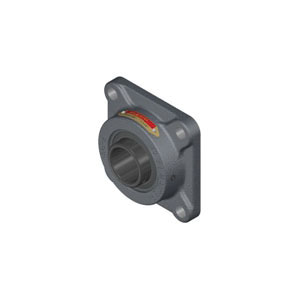

Sealmaster® 715813 SF Series Non-Expansion Standard-Duty Round/Straight Bore Ball Bearing Unit With Flinger, 1-1/4 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 4-5/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORSF20RM
  • Alt Part Number: SF-20 RM
  • MPN: 715813
  • UPC: 662461334683
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

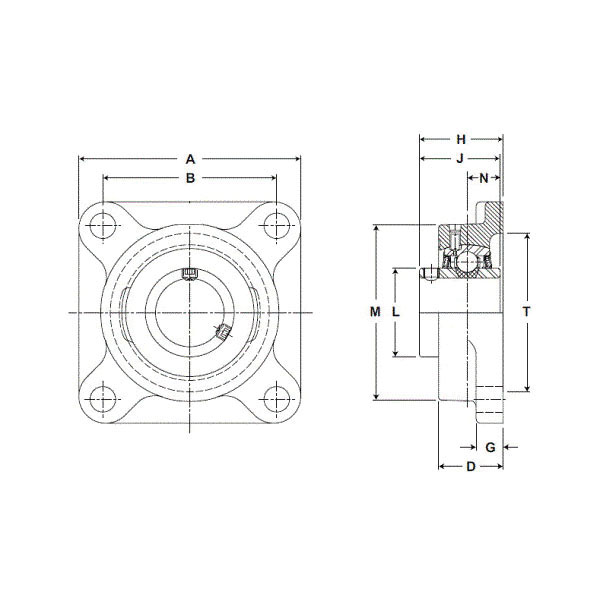

Sealmaster® Ball Bearing Unit, Non-Expansion Standard-Duty Round/Straight Bore, Series: SF Series, 1-1/4 in Bore, 3-5/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-5/8 in Overall Length/Diameter, 1-3/4 in Overall Depth, 4-5/8 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Felt Seal, 5782 lb Dynamic/3493 lb Static Load, 5450 rpm Maximum, 250 deg F, Uncoated

Bearing Material      :      52100 Steel
Bolt Center-to-Center Length      :      3-5/8 in
Bore Diameter      :      1-1/4 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt
Load Capacity      :      5782 lb Dynamic/3493 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      5450 rpm
Overall Depth      :      1-3/4 in
Overall Height      :      4-5/8 in
Overall Length/Diameter      :      4-5/8 in
Seal Material      :      Felt
Series      :      SF Series
Temperature Rating      :      250 deg F
Type      :      Non-Expansion Standard-Duty Round/Straight Bore
  • Item Features 01=Wide outer race
  • Item Features 02=Lock pin and dimple system
  • Item Features 03=The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
  • Item Features 04=Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
  • Item Features 05=Zone hardened inner race
  • Item Features 06=Land riding retainer
  • Item Features 07=Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
  • Item Features 08=All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
  • Item Features 09=Metal nameplate riveted to the housing allows for easy identification even after years of operation
  • Item Features 10=+/- 2 deg static misalignment
  • Item Features 11=Cast iron housing
  • Item Features 12=Wide black oxided outer ring with direct lubrication inlet hole
  • Item Features 13=Wide zone hardened inner ring
  • Item Features 14=GoldPlex® HP grease lubrication
