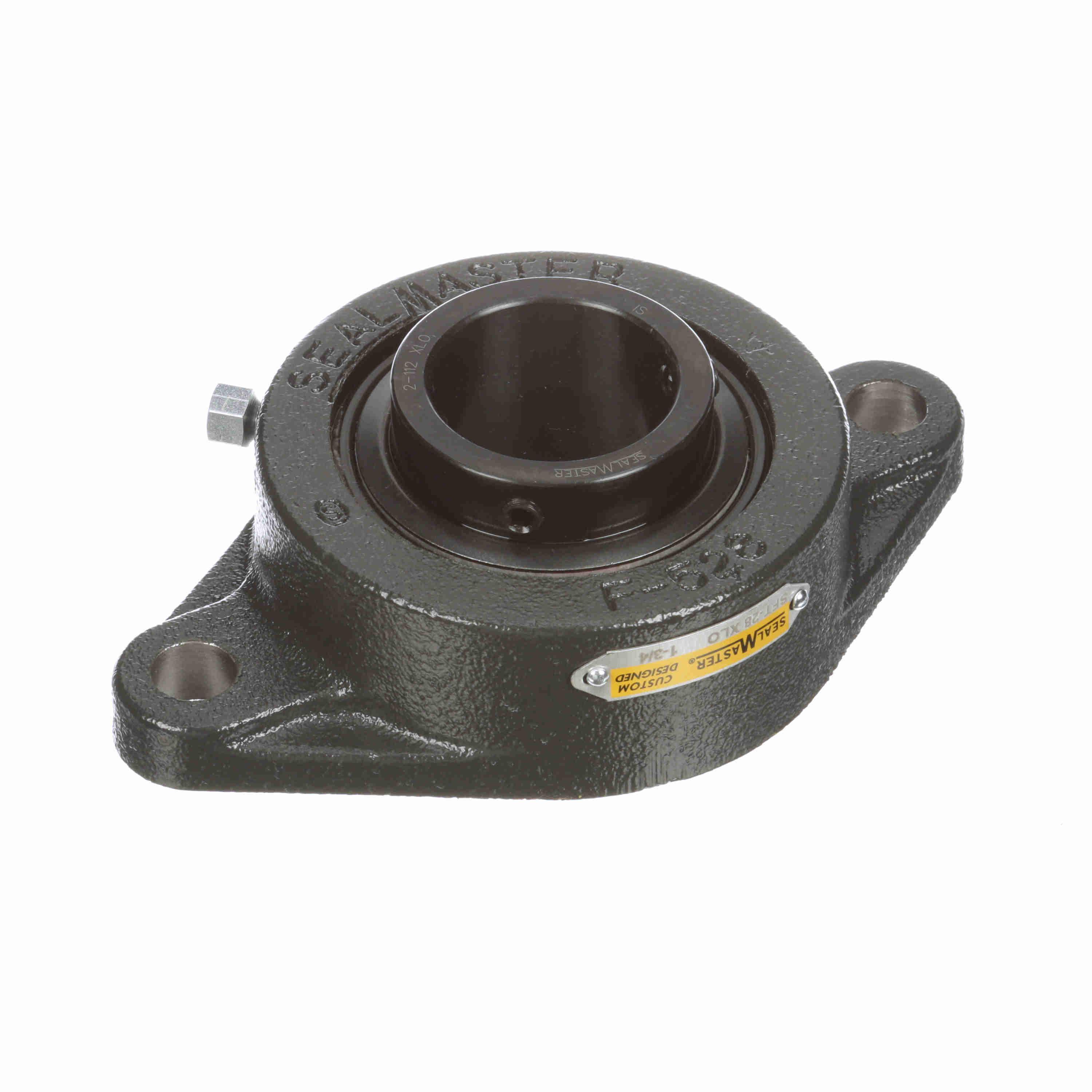

Sealmaster® 714231 MORSFT28XLO

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

Sealmaster® Ball Bearing Unit, Non-Expansion Round Bore Standard-Duty, Series: SFT, 1-3/4 in Bore, 5-27/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 7-1/16 in Overall Length/Diameter, 2-3/64 in Overall Depth, 4-3/8 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Felt Seal, 7901 lb Dynamic/5139 lb Static Load, 100 deg F, Uncoated

• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Land riding retainer
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Wide black oxided outer ring with direct lubrication inlet hole
• Zone hardened inner ring with 120 deg spacing setscrew with diamond faceted setscrews
• Nylon retainer to reduce overall drag
• Oil lubricated and supplied with an adapter and plug for easy field relubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_703544_Catalog.pdf
