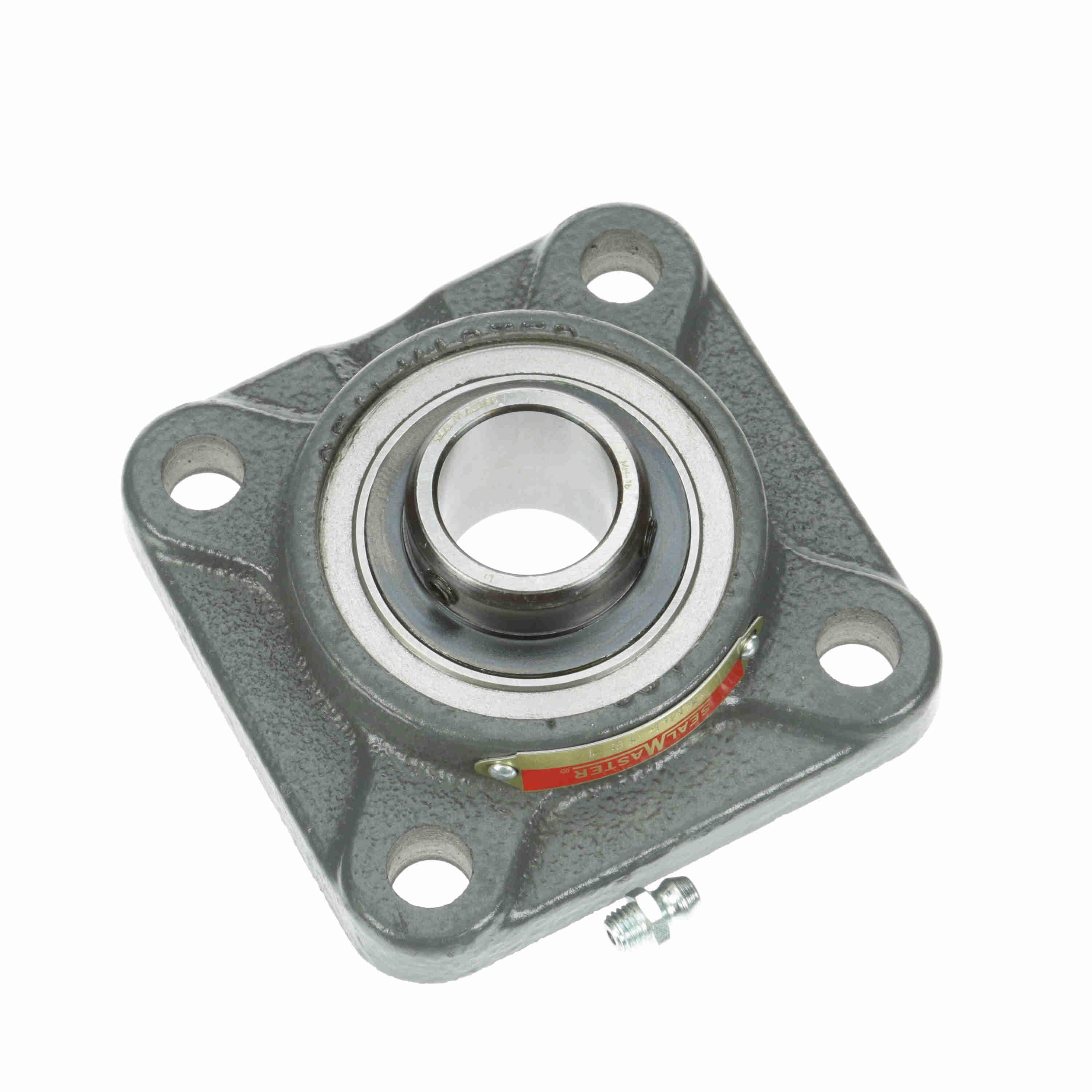

Sealmaster® 711644 MORSFMH19
Sealmaster® 711644 Flange Mounted Ball Bearing, 1.188 in Dia Bore, 3-1/4 in L Bolt Center-to-Center, 4-Bolt Flange Mount
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORSFMH19
- Alt Part Number: SFMH-19
- MPN: 711644
- UPC: 662461342862
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® Flange Mounted Ball Bearing, 1.188 in Bore Dia, 3-1/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting Type, 1.561 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, 4500 rpm Maximum, 220 deg F, Black Oxide
| Bearing Material | : | 52100 Steel |
| Bolt Center-to-Center Length | : | 3-1/4 in |
| Bore Diameter | : | 1.188 in |
| Finish | : | Black Oxide |
| Flange Mounting Type | : | 4-Bolt |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 4500 rpm |
| Overall Height | : | 1.561 in |
| Temperature Rating | : | 220 deg F |
- Cast iron housing, extended inner ring bearing with ball riding nylon retainer
- Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
- Zone hardened inner ring with 120 deg spacing set screw locking with diamond faceted set screws
- Single lip contact seal and flinger
- Supplied sealed for life with optional lubrication fitting in the box
