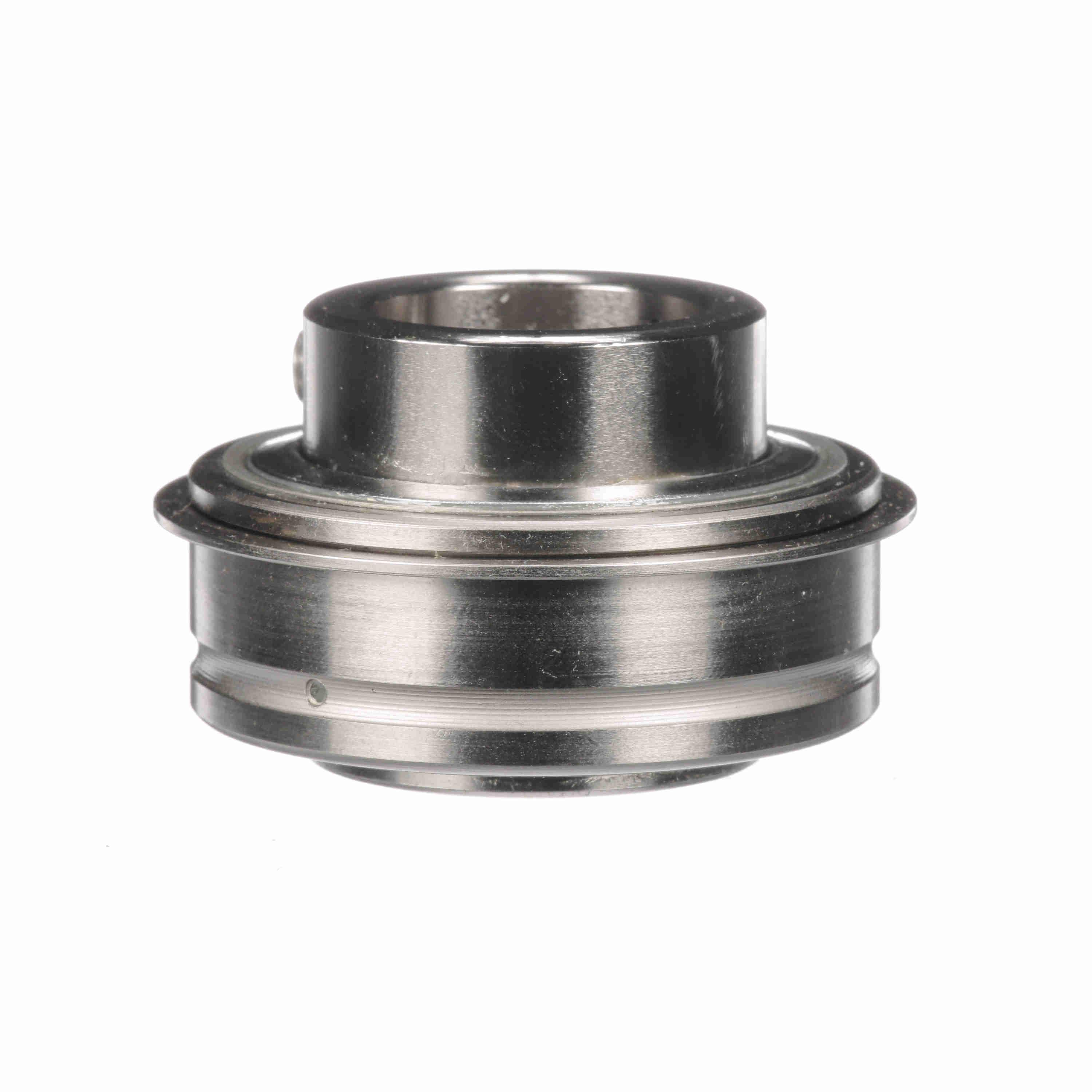

Sealmaster® 711471 MORERXPN16

Sealmaster® ERX-TREME™ PN gold bearings feature high phosphorus, electroless nickel coated steel with patented seal technology and tapered land outer race profile available in either setscrew or Skwezloc® concentric locking collar with a cylindrical OD and snap ring for easy installation in a housing. The high performance triple lip seal is the latest innovation of over 10 patents on sealing technology. The combination of stainless flingers and FKM lip materials provide a strong contaminant resistance and GoldPlex® FG (USDA H1) food grade grease loss. Specially engineered for industries with corrosive wash down environments such as food and beverage, pharmaceuticals and chemical processing, the ERX-TREME™ PN gold mounted ball bearings provide outstanding performance in demanding corrosive environments.

Sealmaster® ERX-TREME™ Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, Series: ER Series, 1 in Bore Dia, 2.0472 in Outside Dia, 1-3/8 in Width, 2801 lb Dynamic/1651 lb Static Load, Steel Bearing, FKM Seal, Brass Cage, 2700 rpm Maximum, -20 to 220 deg F, Phosphorus Nickel Coated

• The inner and outer ring of the Sealmaster® ERX-Treme PN gold bearing are high phosphorous, electroless nickel plated 52100 steel
• HPS is the triple lip contact seal with flinger design provides multi-directional sealing to minimize contamination ingress and retain lubrication
• Single setscrew locking is 300 series stainless steel 120 deg spaced
• Zone hardened inner race
• Land riding retainer
• Synthetic oil food grease
• Relube through lube groove
• Balance three point contact and minimizes inner ring distortion vibration

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_CRBFTSPN16RMW_Manual.pdf
