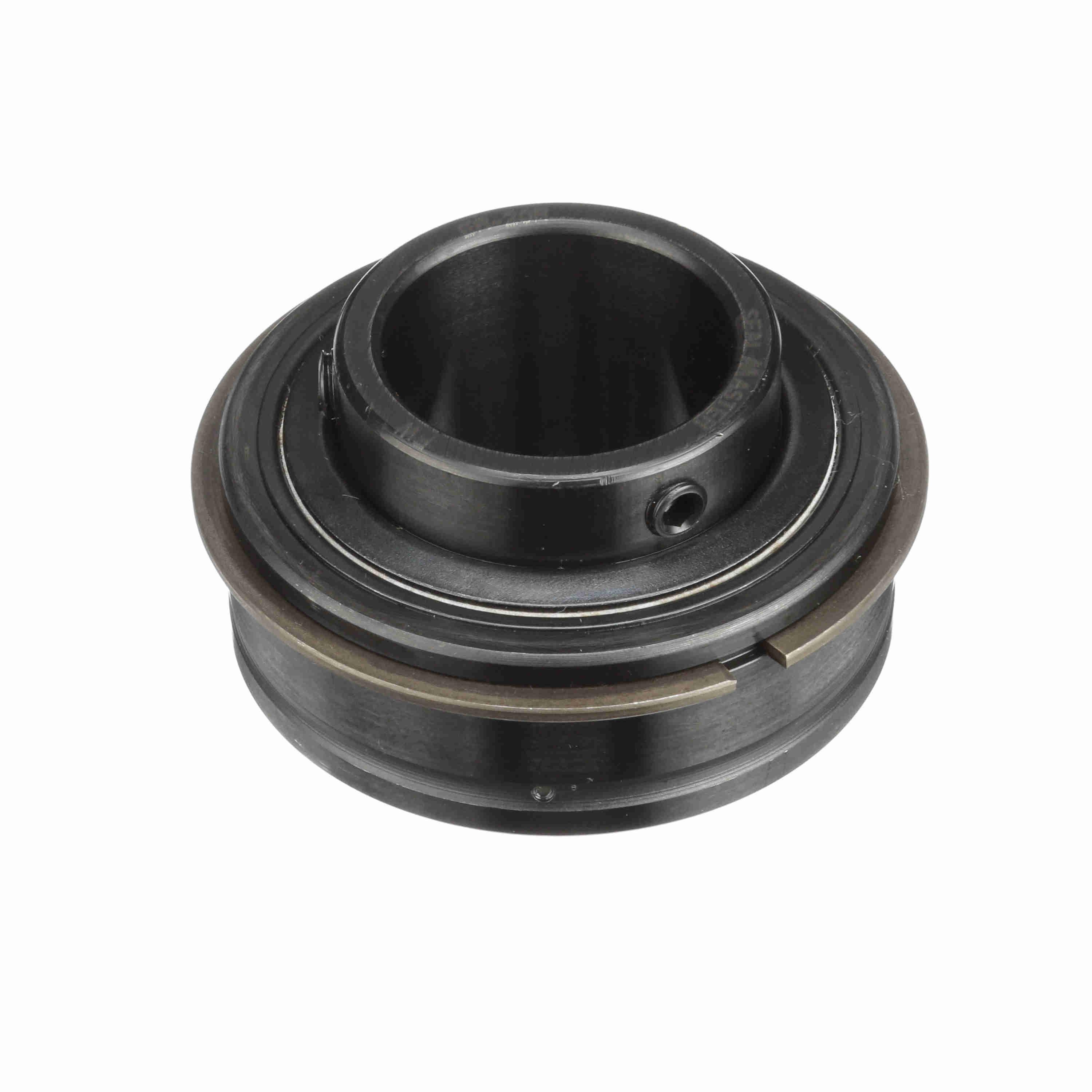

Sealmaster® 711014 MORER20R

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, Series: ER Series, 1-1/4 in Bore, 2.4409 in OD, 1 Rows, 1-1/2 in Width, Double Seal Closure, 4381 lb Dynamic/2567 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 5450 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_ER8_Specification_Sheet.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_RB10_Manual.pdf
