Sealmaster® 710191 MORMFC311

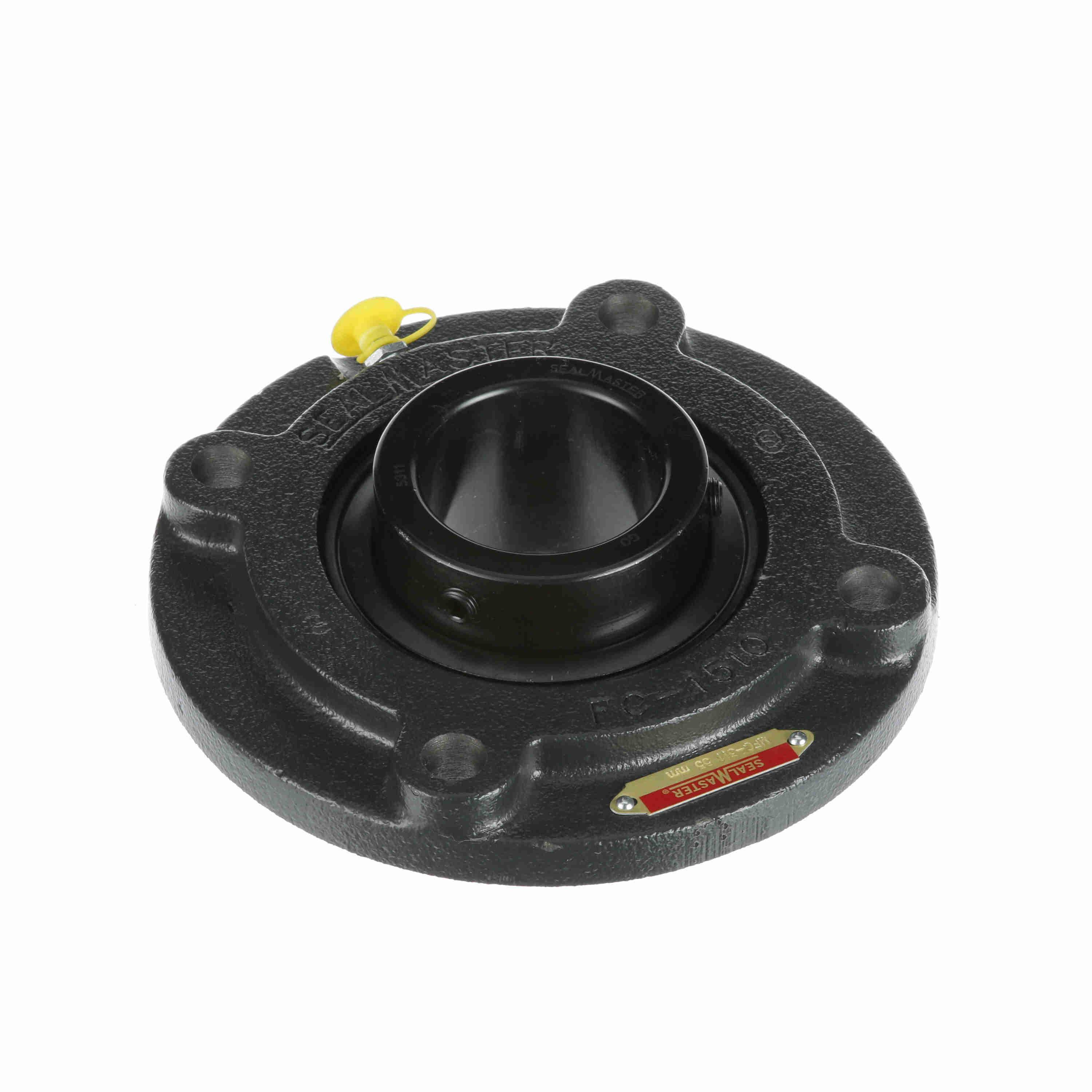

Sealmaster® 710191 MFC Non-Expansion Medium Duty Round/Straight Bore Ball Bearing Cartridge Unit With Flinger, 55 mm Dia Bore, 152.4 mm Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 181 mm OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORMFC311
- Alt Part Number: MFC-311
- MPN: 710191
- UPC: 662461053812
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.
Sealmaster® Ball Bearing Cartridge Unit, Non-Expansion Medium Duty Round/Straight Bore, Series: MFC, 55 mm Bore, 152.4 mm Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 181 mm Overall Length/Diameter, 65.1 mm Overall Depth, 181 mm Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Felt Seal, 52440 N Dynamic/36253 N Static Load, 3000 rpm Maximum, -20 to 220 deg F, Uncoated
| Bearing Material | : | 52100 Steel |
| Bolt Circle Diameter | : | 152.4 mm |
| Bore Diameter | : | 55 mm |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Load Capacity | : | 52440 N Dynamic/36253 N Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 3000 rpm |
| Overall Depth | : | 65.1 mm |
| Overall Height | : | 181 mm |
| Overall Length/Diameter | : | 181 mm |
| Seal Material | : | Felt |
| Series | : | MFC |
| Temperature Rating | : | -20 to 220 deg F |
| Type | : | Non-Expansion Medium Duty Round/Straight Bore |
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- +/- 2 deg static misalignment
- Wide black oxided outer ring with direct lubrication inlet hole
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
