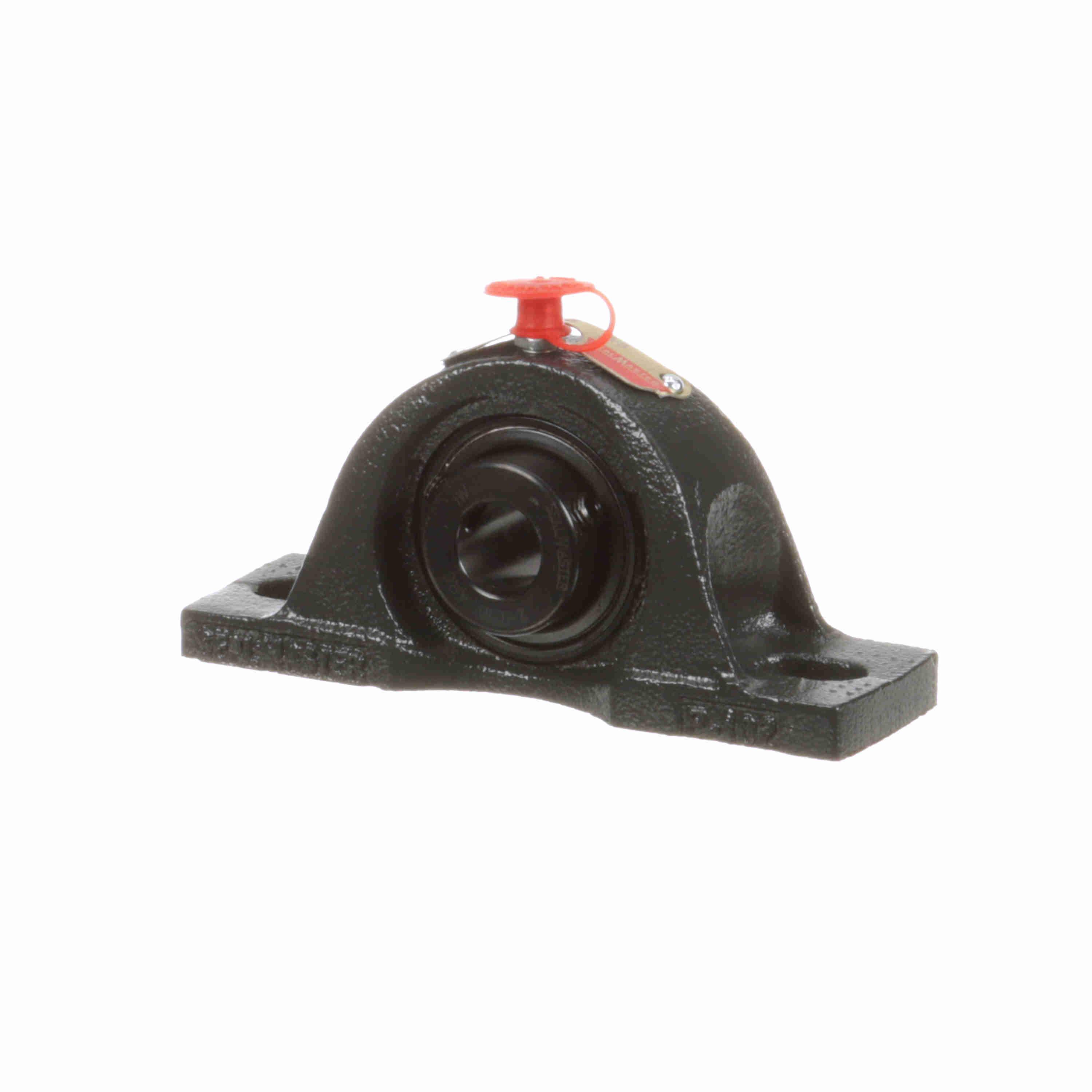

Sealmaster® 708666 MORNPL10DBB

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either set screw or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP™ grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions as illustrated.

Sealmaster® Pillow Block Ball Bearing, 1-Piece Standard Duty, Series: NPL, 5/8 in Bore Dia, 3-3/8 to 4-1/8 in Bolt Center-to-Center Length, 1-1/16 in Base to Bore Centerline, 5 in Overall Length, 1-7/32 in Overall Width, 2.313 in Overall Height, Two-Bolt Base Mount, Straight Bore Type, 1-1/2 in Base Width, Set Screw Locking Device, Nomex® Labyrinth Seal, Non-Expansion, 2611 lb Dynamic, 220 deg F, 7300 rpm Maximum, 52100 Steel, Black Oxide

• Epoxy powder coated cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing set screw locking with diamond faceted set screws
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster® exclusive lock and pin dimple for direct lubrication and anti-rotation
• High temperature and low base

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764269_Catalog.pdf
