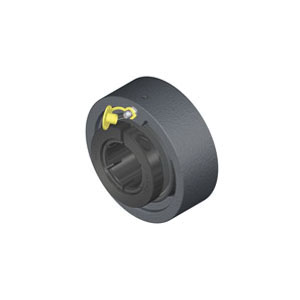

Sealmaster® 706056 MORMSC32TC

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Cartridge, Medium Duty Non-Expansion, Series: MSC-T, 2 in Bore, 4.938 in OD, 2-1/4 in Width, 9752 lb Dynamic/6601 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 2550 rpm Maximum, 250 deg F, Black Oxide Coated

• Item Features 01=Cylindrical cartridge housing unit
• Item Features 02=Zone hardened inner race
• Item Features 03=Skwezloc® collar locking
• Item Features 04=Wide outer race
• Item Features 05=Lock pin and dimple system
• Item Features 06=Land riding retainer
• Item Features 07=Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Item Features 08=Single lip contact seal type
• Item Features 09=Without seal flinger

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
