Sealmaster® 705961 MORER27TC

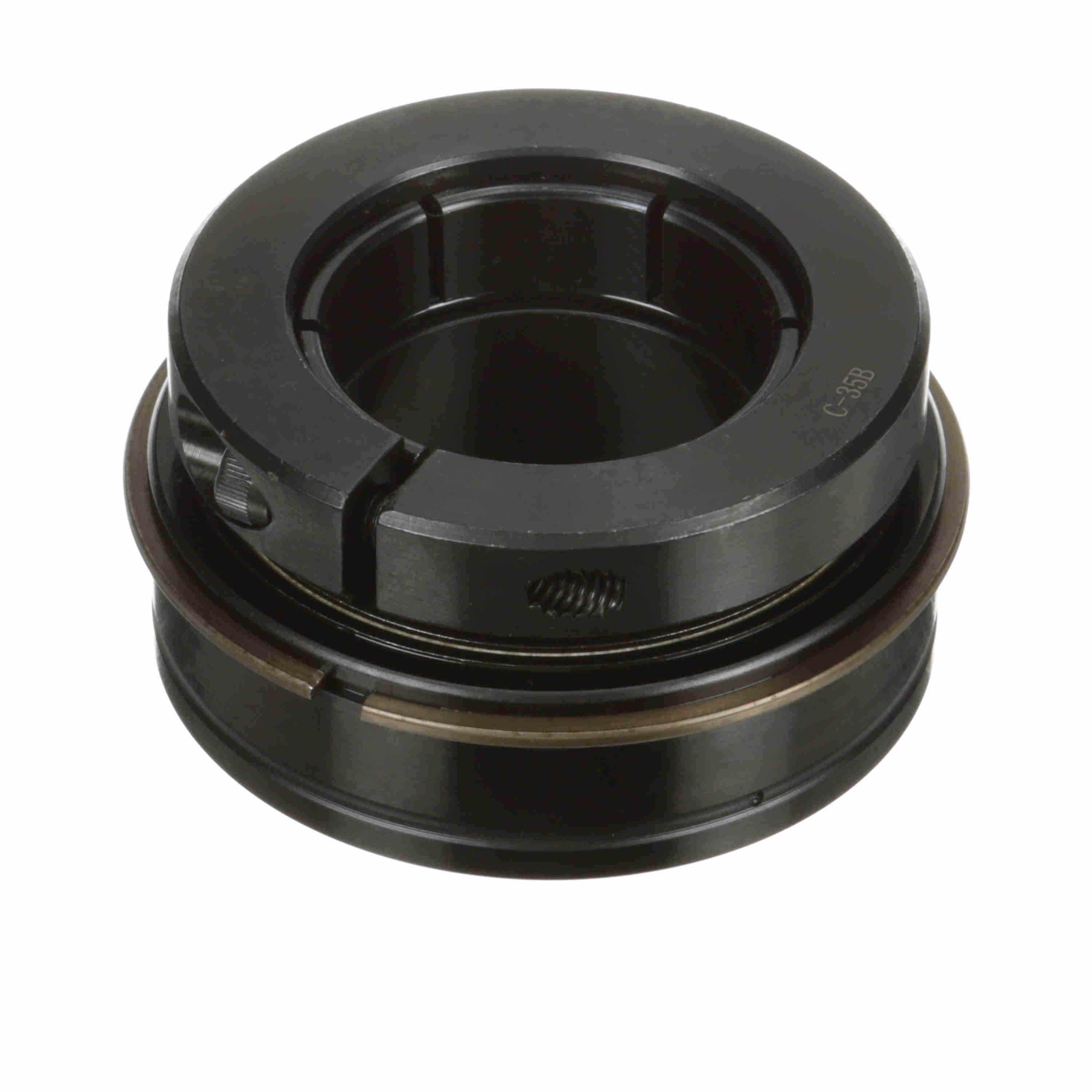

Sealmaster® 705961 ER-T Standard-Duty Straight Bore Ball Bearing Insert With Snap Ring, 1.688 in Dia Bore, 3.594 in OD, 1 Rows, 2 in W, 7901 lb Dynamic/5139 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORER27TC
- Alt Part Number: ER-27TC
- MPN: 705961
- UPC: 662461034248
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Ball Bearing Insert, Standard-Duty Straight Bore, Series: ER-T, 1.688 in Bore, 3.594 in OD, 1 Rows, 2 in Width, Double Seal Closure, 7901 lb Dynamic/5139 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 3800 rpm Maximum, 250 deg F, Black Oxide Coated
| Bearing Material | : | Steel |
| Bore Diameter | : | 1.688 in |
| Cage Material | : | Brass |
| Closure Type | : | Double Seal |
| Finish | : | Black Oxide Coated |
| Load Capacity | : | 7901 lb Dynamic/5139 lb Static |
| Maximum Speed | : | 3800 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 3.594 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | ER-T |
| Temperature Rating | : | 250 deg F |
| Type | : | Standard-Duty Straight Bore |
| Width | : | 2 in |
- Item Features 01=Skwezloc® collar locking
- Item Features 02=Zone hardened inner race
- Item Features 03=Lithium complex NLGI #2 grease with an EP additive
- Item Features 04=Outer race with tapered lands
- Item Features 05=Land riding retainer
- Item Features 06=Single lip contact seal type
- Item Features 07=Cylindrical outer diameter bearing
