Sealmaster® 705887 MORNPL35TC

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.

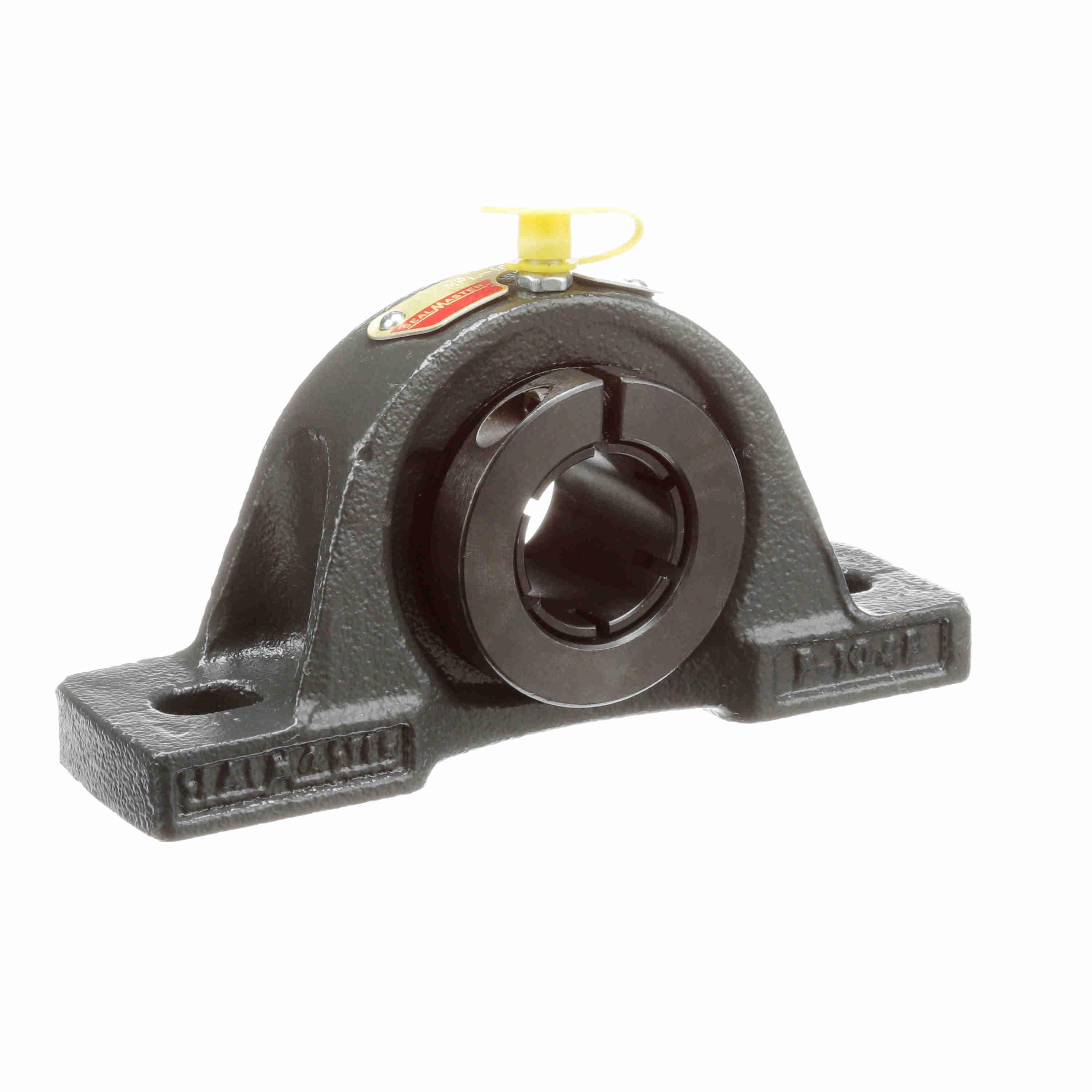

Sealmaster® Pillow Block Ball Bearing Unit, Standard-Duty, Series: NPL-T, 2-3/16 in Bore, 6-1/2 to 7 in Bolt Center-to-Center Length, 2-7/16 in Base to Bore Centerline, 8-5/8 in Overall Length, 2-1/4 in Overall Width, 4-15/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-3/8 in Base Width, Skwezloc® Concentric Collar Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 9752 lb Dynamic Load, 250 deg F, 3250 rpm Maximum, Cast Iron, Uncoated

• Wide outer ring
• Zone hardened inner race
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• GoldPlex®-HP grease
• Alemite fitting lubrication
• 52100 black oxide coated steel insert
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_705493_Specification_Sheet.pdf
