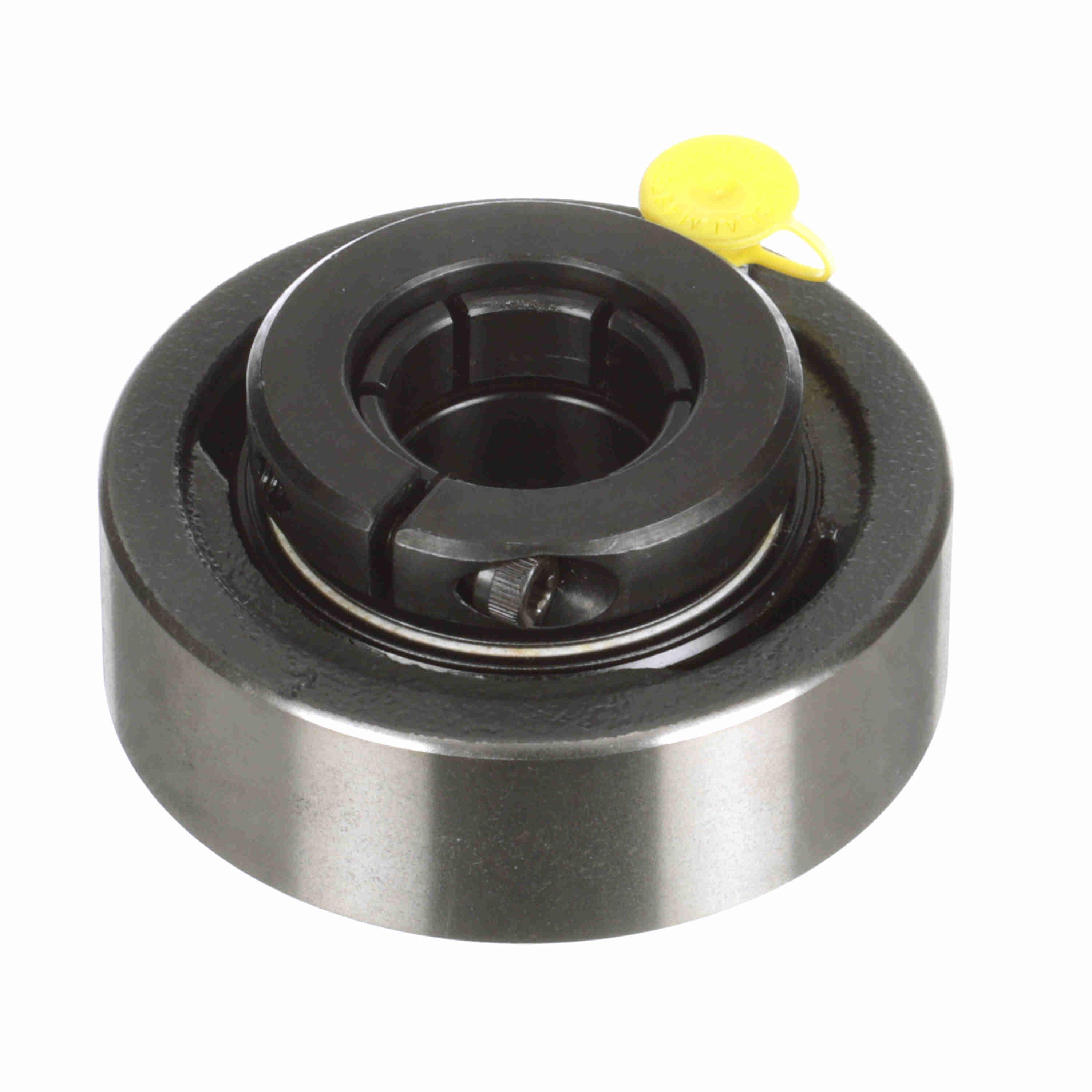

Sealmaster® 705789 MORSC20TC

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Cartridge, Non-Expansion Standard-Duty, Series: SC-T, 1-1/4 in Bore, 3-7/8 in OD, 1-3/4 in Width, 5782 lb Dynamic/3493 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Brass Cage, 4650 rpm Maximum, 250 deg F, Black Oxide Coated

• Item Features 01=Cylindrical cartridge housing unit
• Item Features 02=Skwezloc® collar locking
• Item Features 03=Zone hardened inner race
• Item Features 04=Wide outer race
• Item Features 05=Lock pin and dimple system
• Item Features 06=Land riding retainer
• Item Features 07=Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Item Features 08=Cast iron housing
• Item Features 09=Single lip contact seal type
• Item Features 10=Without seal flinger

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
