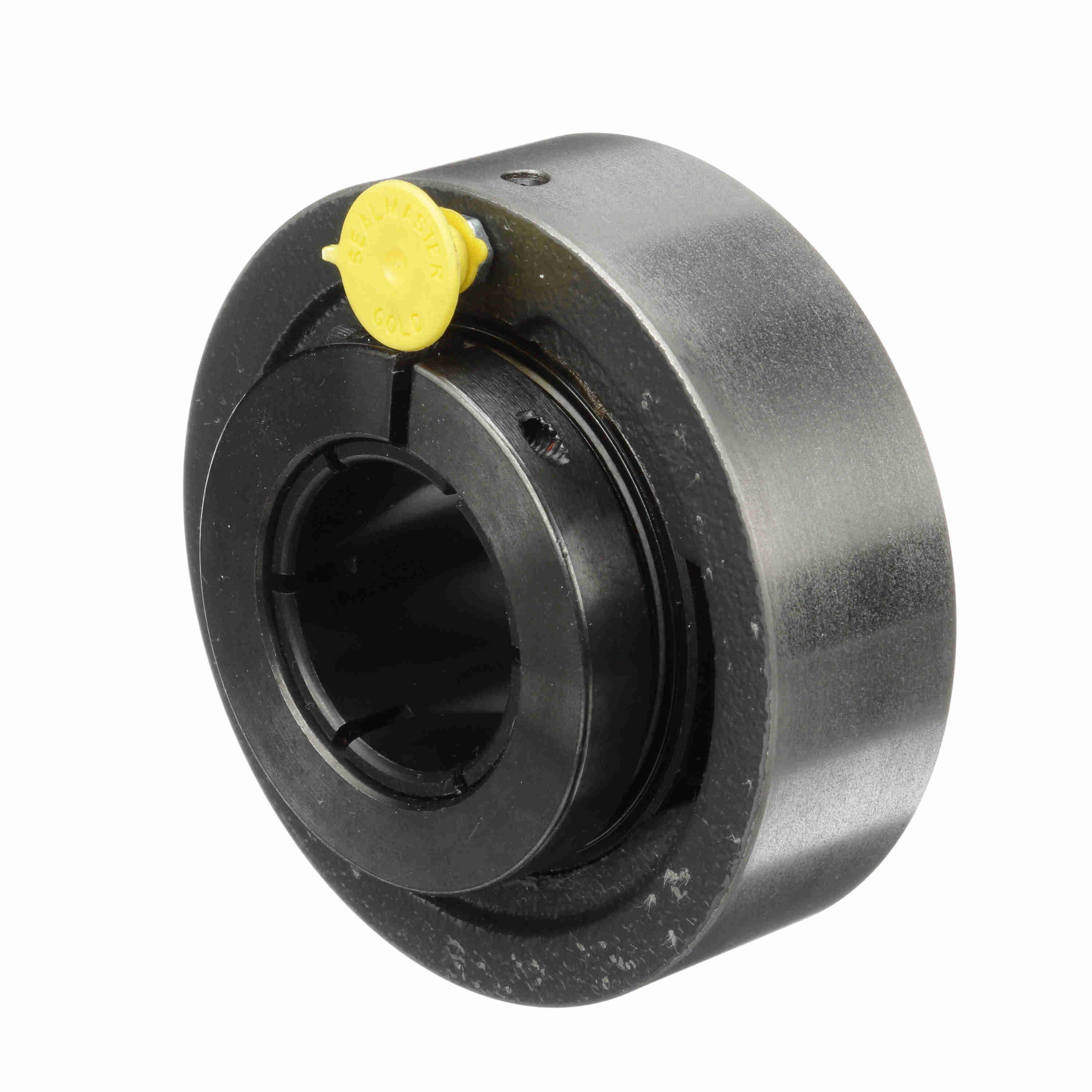

Sealmaster® 705416 MORSC28T

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Cartridge, Non-Expansion Standard Duty, Series: SC-T, 1-3/4 in Bore, 4-3/8 in OD, 2 in Width, 7901 lb Dynamic/5139 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 5300 rpm Maximum, 250 deg F, Black Oxide Coated

• Cylindrical cartridge housing unit
• Zone hardened inner race
• Wide outer race
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Powder coated epoxy cast iron cylindrical
• O.D. housing with extended inner ring bearings
• Skwezloc concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_705413_Catalog.pdf
