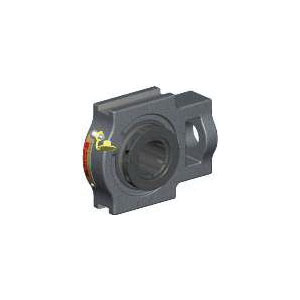

Sealmaster® 705371 MORMST36T

Sealmaster® Gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Take-Up Ball Bearing Unit, Medium Duty Non-Expansion Wide Slot, Series: MST, 2-1/4 in Bore, 7-5/8 in Length, 2-3/8 in Width, 5-3/4 in Height, 11789 lb Dynamic Load, For Use With: MSTH-36T Center Pull Take Up Frame, Steel Bearing, 250 deg F, Uncoated

• Item Features 01=Skwezloc® collar locking
• Item Features 02=Standard felt seal type
• Item Features 03=GoldPlex® HP grease lubrication
• Item Features 04=Cast iron housing
• Item Features 05=Metal land riding retainer type
• Item Features 06=Wide outer race
• Item Features 07=Lock pin and dimple system
• Item Features 08=Zone hardened inner race
• Item Features 09=Metal nameplate riveted to the housing allows for easy identification even after years of operation

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700495_Catalog.pdf
