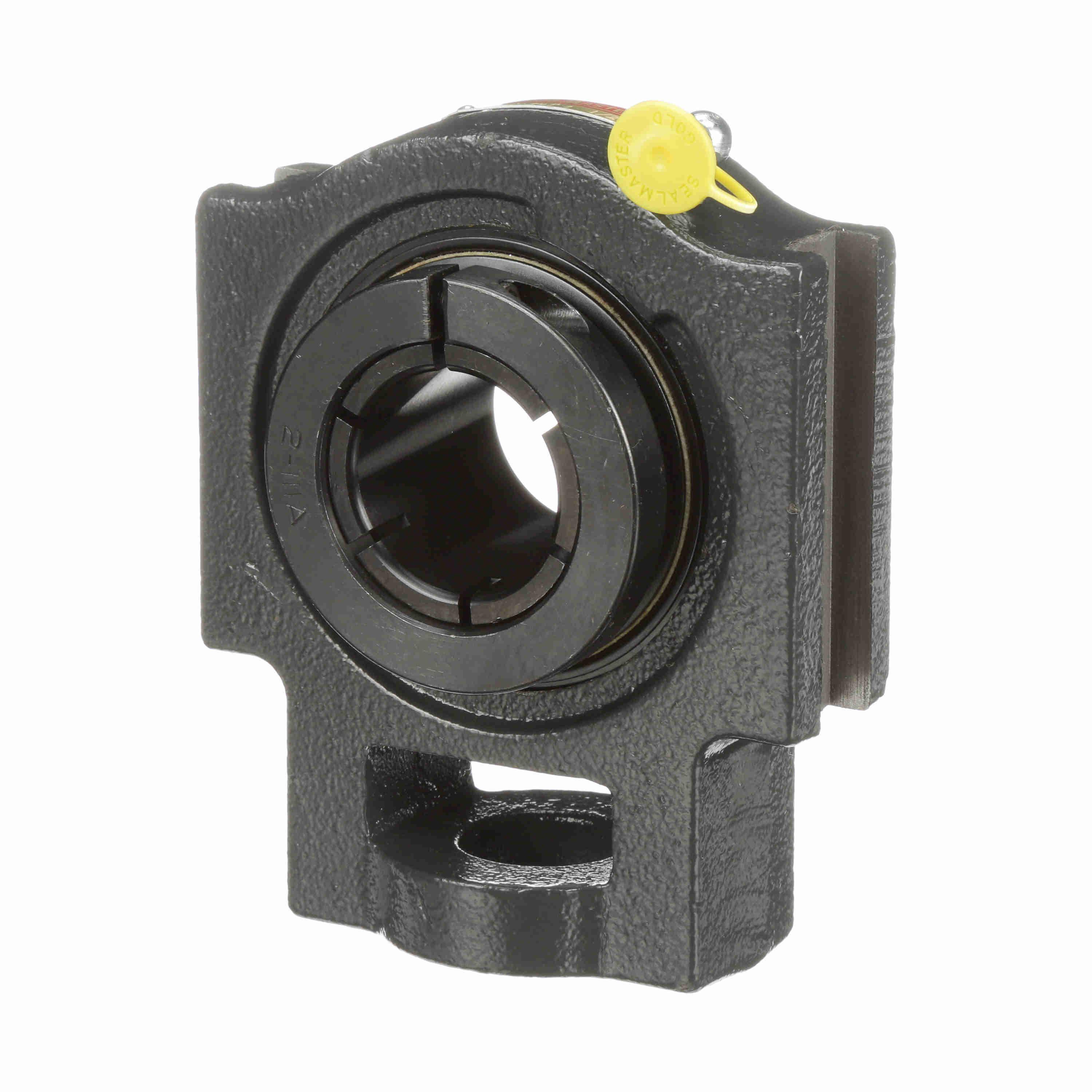

Sealmaster® 705368 MORMST31T

Sealmaster® Gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Take-Up Ball Bearing Unit, Medium Duty Non-Expansion Wide Slot, Series: MST, 1-15/16 in Bore, 6-3/4 in Length, 2-1/4 in Width, 5-3/4 in Height, 5782 lb Dynamic Load, For Use With: MSTH-31T Center Pull Take Up Frame, Steel Bearing, 250 deg F, Uncoated

• Metal land riding retainer type
• Wide outer race
• Zone hardened inner race
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_705365_Catalog.pdf
