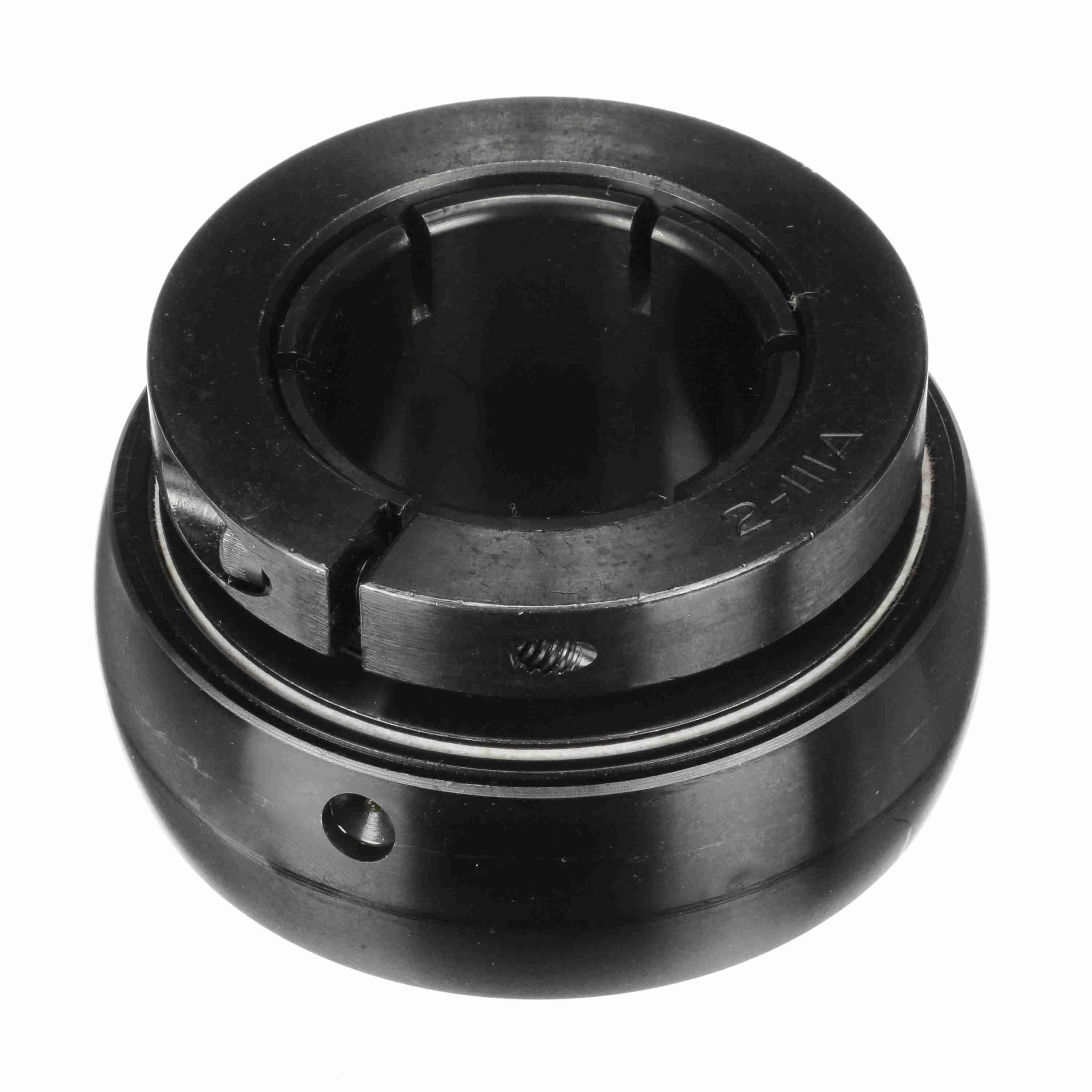

Sealmaster® 705323 MOR2-22T

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, 2-1/8 in Bore, 3.937 in OD, 2-1/4 in Width, Double Seal Closure, 9752 lb Dynamic/6601 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 4500 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

• Wide outer ring
• Lock pin and dimple system
• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Skwezloc® is a concentric locking collar clamp design that results in near perfect concentricity of the shaft to the bearing bore and maintains near perfect ball path roundness
• Zone hardened inner race
• Land riding retainer
• Lithium complex NLGI #2 grease with an EP additive

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_2012T_Specification_Sheet.pdf
