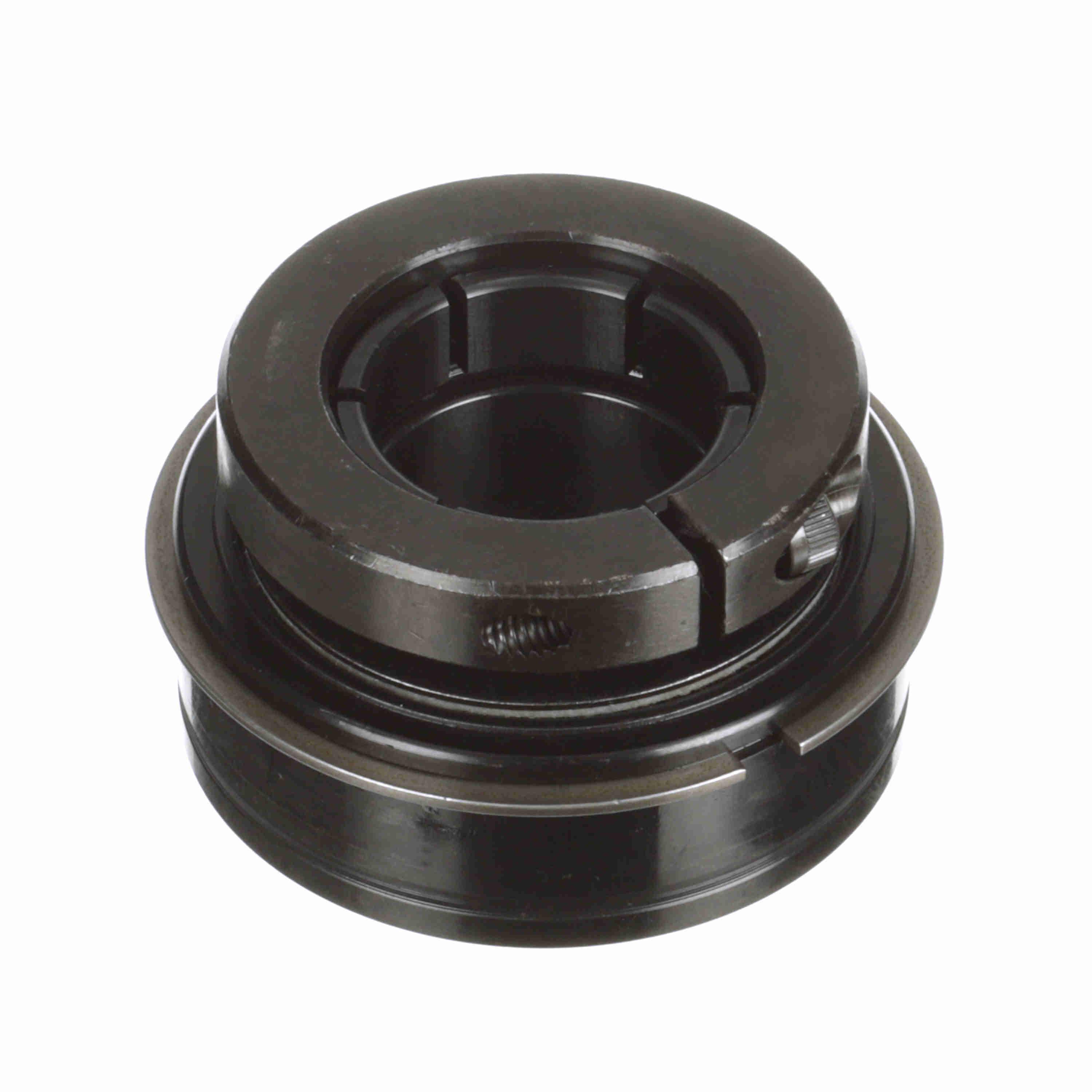

Sealmaster® 705050 MORERX32TXLO

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Standard Duty Straight Bore, Series: ERX-T, 2 in Bore, 4.188 in OD, 1 Rows, 2-1/4 in Width, Double Seal Closure, 9752 lb Dynamic/6601 lb Static Load, Steel Bearing, Felt Seal, Plastic Cage, 1250 rpm Maximum, 200 deg F, Black Oxide Coated

• Skwezloc® collar locking
• Zone hardened inner race
• Light oil grease
• Wide outer race
• Lock pin and dimple system
• Land riding retainer
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Skwezloc concentric locking for near perfect concentricity_x005f Extra low drag seal cut down felt labyrinth seal and flinger_x005f Oil lubricated for reduced internal friction_x005f Nylon retainer to reduce overall drag

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
