Sealmaster® 704485 MORSF39TCCR
  1. pin-int

Sealmaster® 704485 MORSF39TCCR

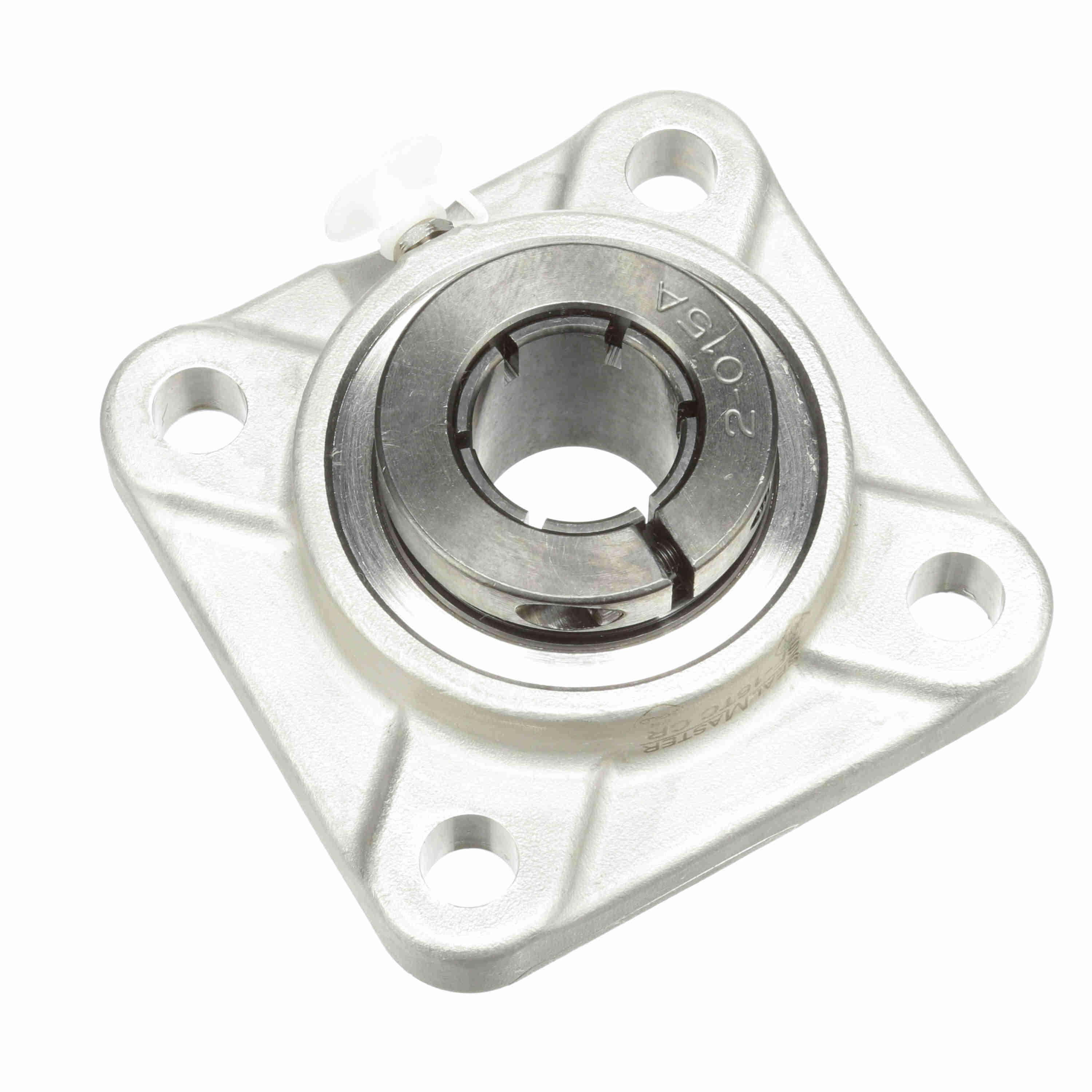

Sealmaster® 704485 SF-T Non-Expansion Standard-Duty Round/Straight Bore Ball Bearing Unit, 2-7/16 in Dia Bore, 5-5/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 6-7/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORSF39TCCR
  • Alt Part Number: SF-39TC CR
  • MPN: 704485
  • UPC: 662461251423
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

Sealmaster® Ball Bearing Unit, Non-Expansion Standard-Duty Round/Straight Bore, Series: SF-T, 2-7/16 in Bore, 5-5/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 6-7/8 in Overall Length/Diameter, 2-3/4 in Overall Depth, 6-7/8 in Overall Height, Skwezloc® Collar Locking Device, 52100 Steel Bearing, Nitrile Rubber Seal, 11789 lb Dynamic/8150 lb Static Load, 2550 rpm Maximum, 250 deg F

Bearing Material      :      52100 Steel
Bolt Center-to-Center Length      :      5-5/8 in
Bore Diameter      :      2-7/16 in
Flange Mounting Type      :      4-Bolt
Load Capacity      :      11789 lb Dynamic/8150 lb Static
Locking Device      :      Skwezloc® Collar
Maximum Speed      :      2550 rpm
Overall Depth      :      2-3/4 in
Overall Height      :      6-7/8 in
Overall Length/Diameter      :      6-7/8 in
Seal Material      :      Nitrile Rubber
Series      :      SF-T
Temperature Rating      :      250 deg F
Type      :      Non-Expansion Standard-Duty Round/Straight Bore
  • Item Features 01=Wide outer race
  • Item Features 02=Lock pin and dimple system
  • Item Features 03=Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
  • Item Features 04=Skwezloc® is a concentric collar clamp design that results in near perfect concentricity of the shaft to the bearing bore
  • Item Features 05=Zone hardened inner race
  • Item Features 06=Land riding retainer
  • Item Features 07=Solid bases are standard on Sealmaster® Gold ball bearing pillow blocks
  • Item Features 08=All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
  • Item Features 09=Metal nameplate riveted to the housing allows for easy identification even after years of operation
  • Item Features 10=+/- 2 deg static misalignment
  • Item Features 11=Cast iron housing
  • Item Features 12=Wide black oxided outer ring with direct lubrication inlet hole
  • Item Features 13=Wide zone hardened inner ring
  • Item Features 14=GoldPlex® FG grease lubrication
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700128_Catalog.pdf
