Sealmaster® 704302 MORMSF47C

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

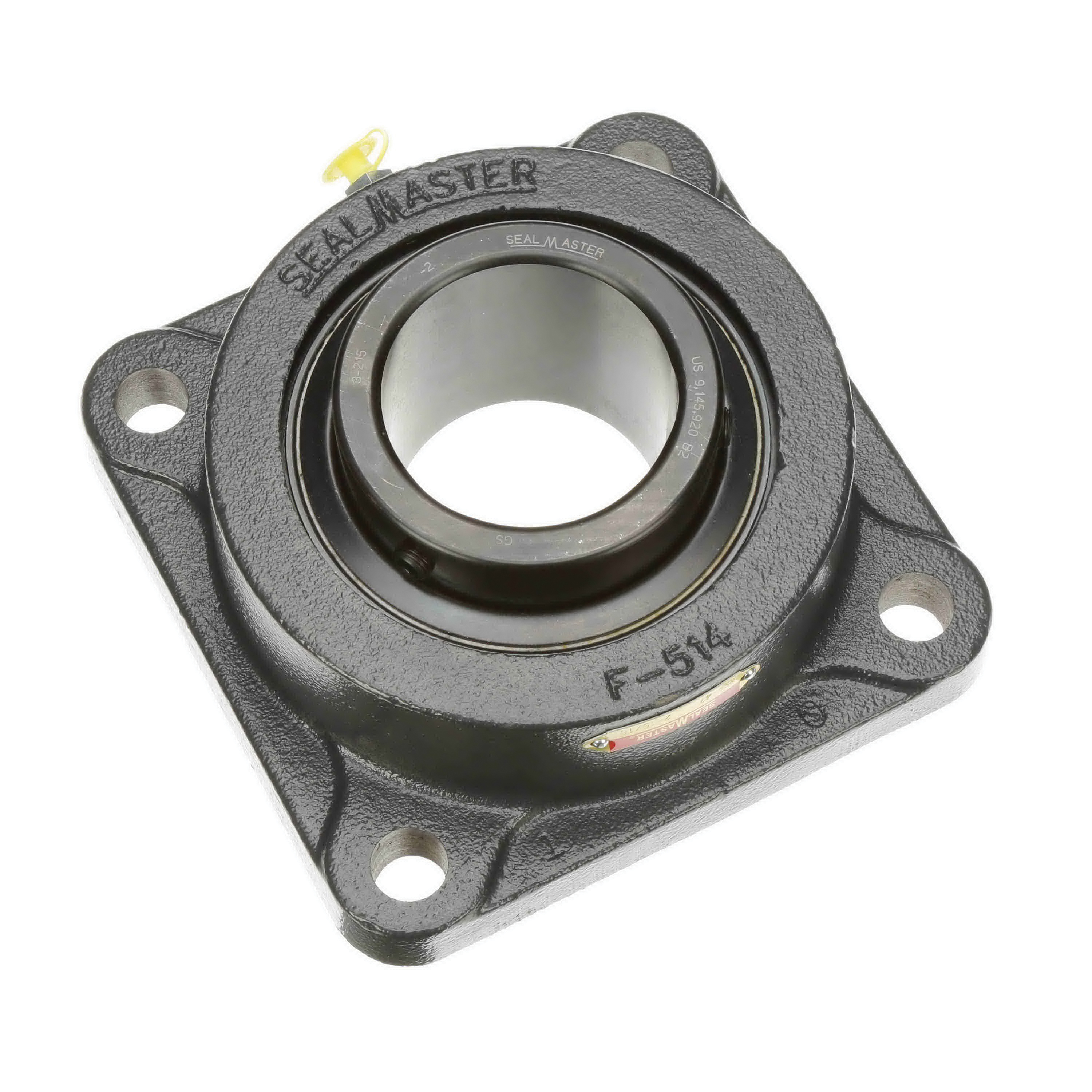

Sealmaster® Flange Mount Ball Bearing Unit, Medium Duty Non-Expansion Round Straight Bore, Series: MSF, 2-15/16 in Bore, 6 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 7-3/4 in Overall Length/Diameter, 3-1/2 in Overall Depth, 7-3/4 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 17412 lb Dynamic Load, 1950 rpm Maximum, -20 to 250 deg F, Uncoated

• Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_MSF15_Specification_Sheet.pdf
