Sealmaster® 704289 MORMSF28C
  1. pin-int

Sealmaster® 704289 MORMSF28C

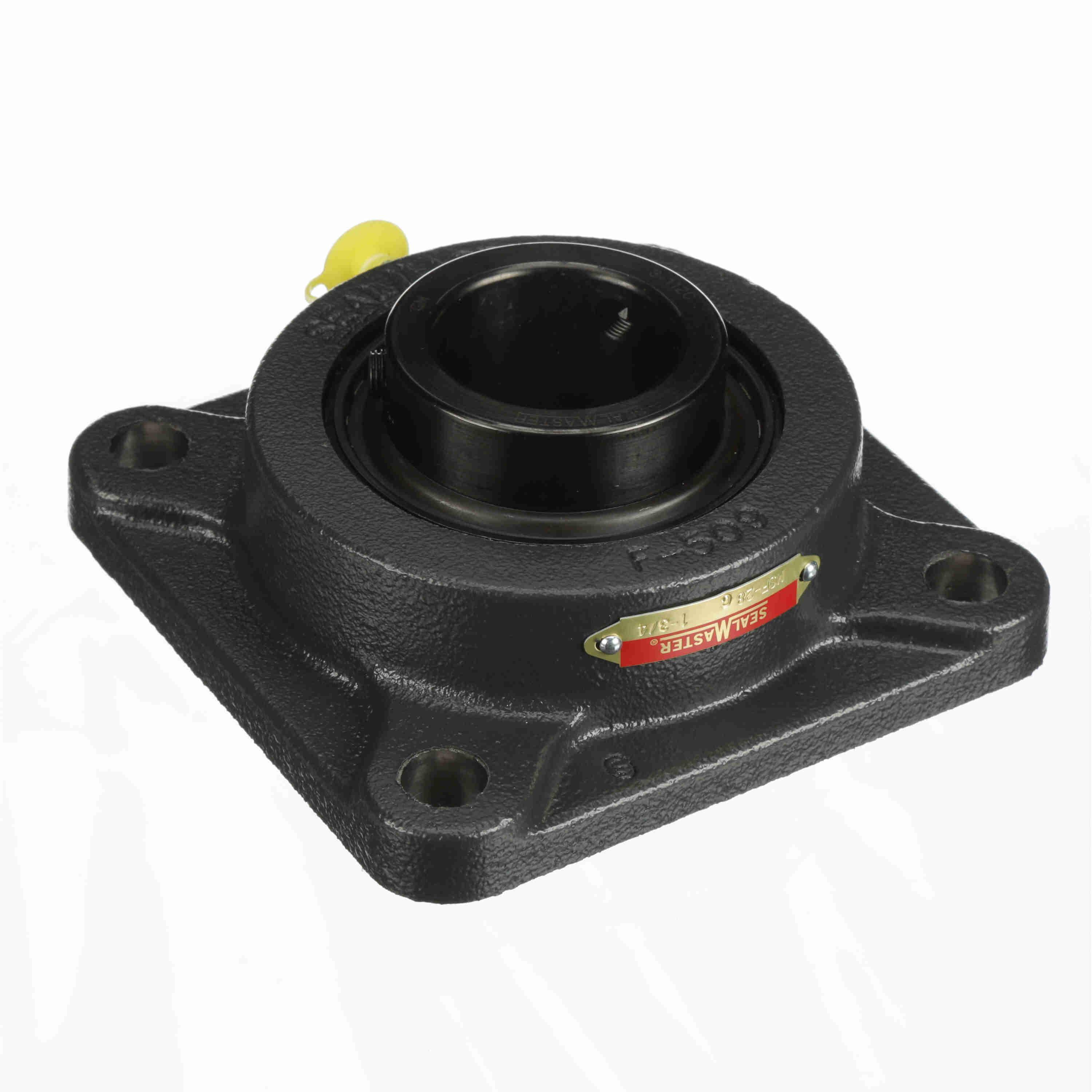

Sealmaster® 704289 MSF Medium Duty Non-Expansion Round Straight Bore Flange Mount Ball Bearing Unit, 1-3/4 in Dia Bore, 4-3/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-5/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORMSF28C
  • Alt Part Number: MSF-28C
  • MPN: 704289
  • UPC: 662461027332
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Flange Mount Ball Bearing Unit, Medium Duty Non-Expansion Round Straight Bore, Series: MSF, 1-3/4 in Bore, 4-3/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 2-5/32 in Overall Depth, 5-5/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 7889 lb Dynamic/5216 lb Static Load, 3550 rpm Maximum, -20 to 250 deg F, Uncoated

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      4-3/8 in
Bore Diameter      :      1-3/4 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt
Load Capacity      :      7889 lb Dynamic/5216 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      3550 rpm
Overall Depth      :      2-5/32 in
Overall Height      :      5-5/8 in
Overall Length/Diameter      :      5-5/8 in
Seal Material      :      Nitrile Rubber
Series      :      MSF
Temperature Rating      :      -20 to 250 deg F
Type      :      Medium Duty Non-Expansion Round Straight Bore
  • Wide outer ring
  • Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
  • GoldPlex-HP grease
  • 52100 black oxide coated steel bearing
  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
  • Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_MSF15_Specification_Sheet.pdf
