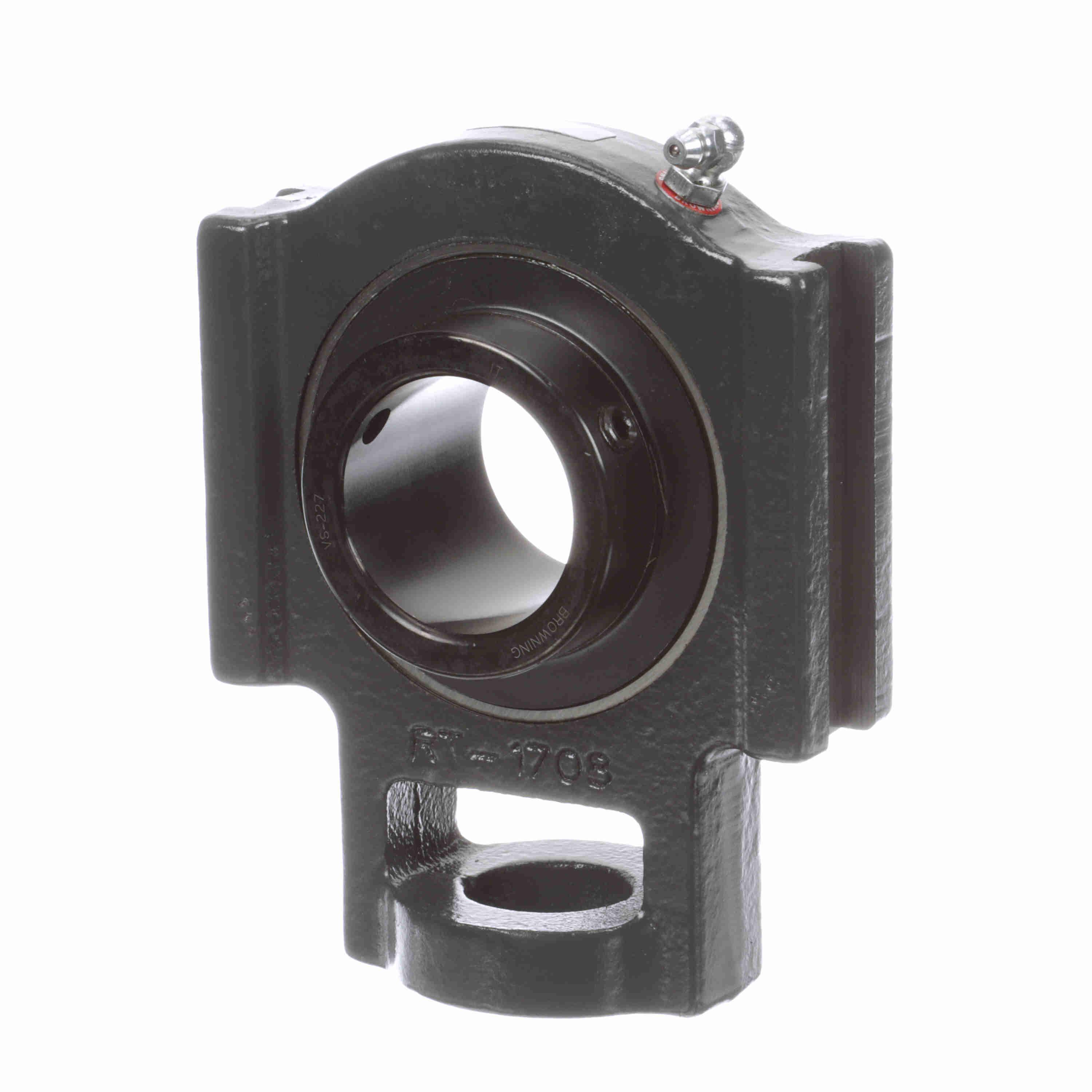

Sealmaster® 703708 MORST27C

Sealmaster® Gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Take-Up Ball Bearing Unit, Standard Duty Wide Slot, Series: ST Series, 1-11/16 in Bore, 5-11/16 in Length, 2-3/16 in Width, 4-5/8 in Height, 7901 lb Dynamic/5139 lb Static Load, For Use With: STH-27C Center Pull Take Up Frame, Steel Bearing, 250 deg F, Uncoated

• Metal land riding retainer type
• Wide outer race
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_703700_Catalog.pdf
