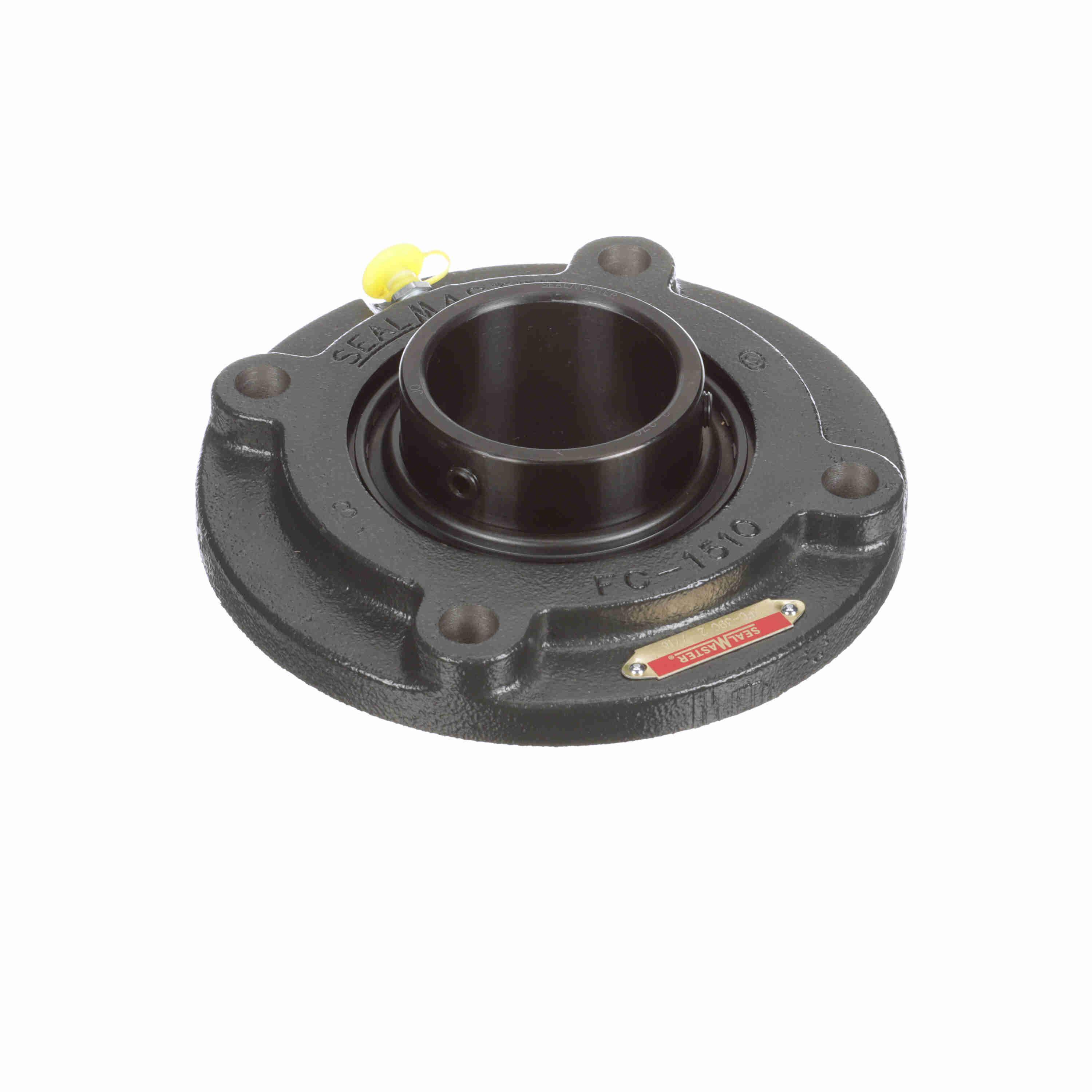

Sealmaster® 703511 MORSFC39C

Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.

Sealmaster® Ball Bearing Unit, Non-Expansion Standard-Duty Round/Straight Bore, Series: SFC, 2-7/16 in Bore, 6 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 7-1/8 in Overall Length/Diameter, 2-9/16 in Overall Depth, 7-1/8 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Nitrile Rubber Seal, 11789 lb Dynamic/8150 lb Static Load, 2550 rpm Maximum, 250 deg F

• Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
• Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
• Metal nameplate riveted to the housing allows for easy identification even after years of operation
• Wide black oxided outer ring with direct lubrication inlet hole
• Flange cartridge housing
• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
• Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700512_Catalog.pdf
