Sealmaster® 702550 MORMSFPD47C

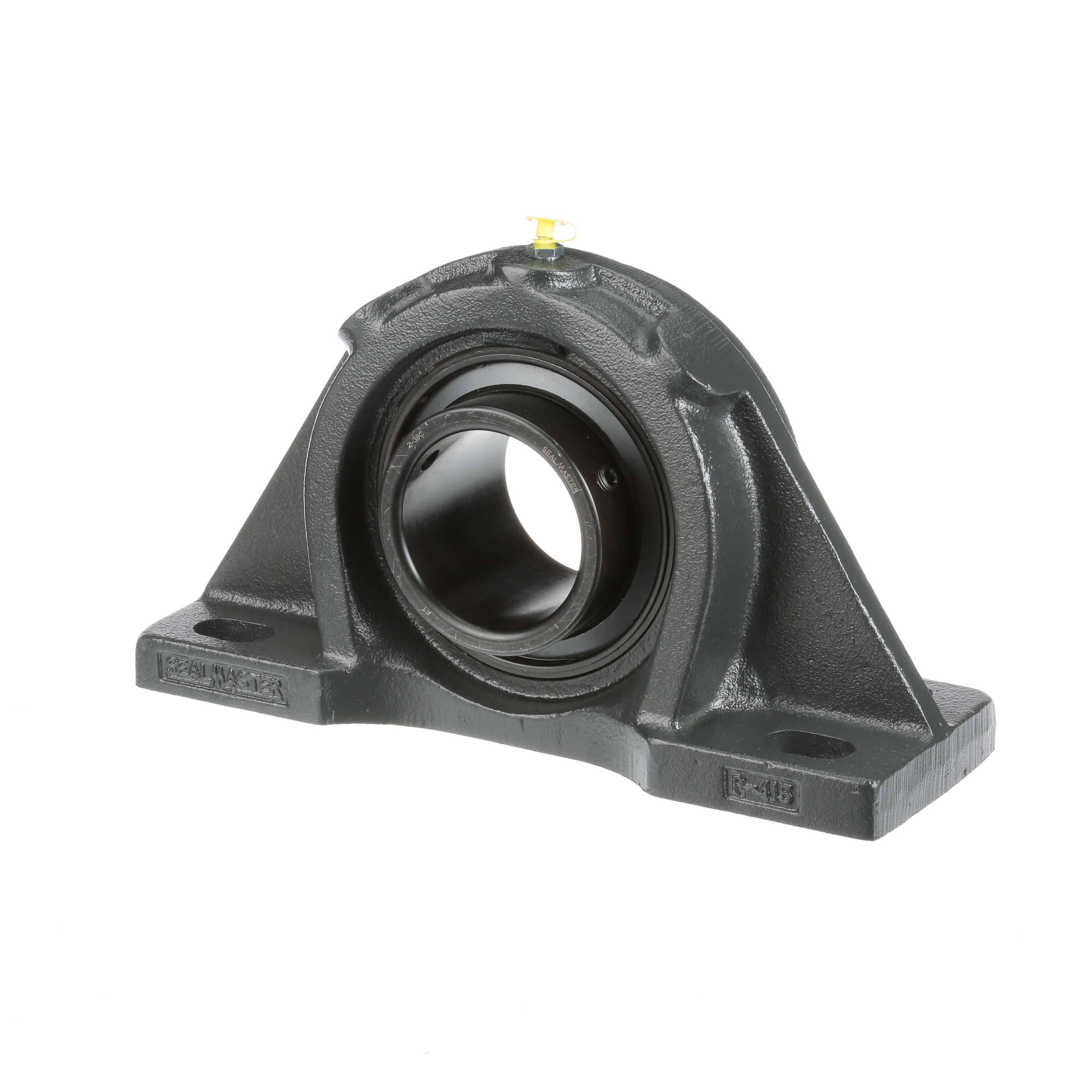

Sealmaster® 702550 MSFPD-C Medium Duty Pillow Block Ball Bearing Unit, 2-15/16 in Dia Bore, 9 to 10-1/2 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13 in OAL x 7-5/8 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORMSFPD47C
  • Alt Part Number: MSFPD-47C
  • MPN: 702550
  • UPC: 662461018422
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.

Sealmaster® Pillow Block Ball Bearing Unit, Medium Duty, Series: MSFPD-C, 2-15/16 in Bore, 9 to 10-1/2 in Bolt Center-to-Center Length, 3-3/4 in Base to Bore Centerline, 13 in Overall Length, 3-7/8 in Overall Width, 7-5/8 in Overall Height, Four-Bolt Base Mounting, Round Bore, 5 in Base Width, Double Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 17412 lb Dynamic Load, 250 deg F, 1950 rpm Maximum, Cast Iron, Uncoated

Base Width      :      5 in
Base to Bore Centerline      :      3-3/4 in
Bolt Center-to-Center Length      :      9 to 10-1/2 in
Bore Diameter      :      2-15/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Uncoated
Load Capacity      :      17412 lb Dynamic
Locking Device      :      Double Set Screw
Material      :      Cast Iron
Maximum Speed      :      1950 rpm
Mounting Type      :      Four-Bolt Base
Overall Height      :      7-5/8 in
Overall Length      :      13 in
Overall Width      :      3-7/8 in
Seal Type      :      Single Lip
Series      :      MSFPD-C
Temperature Rating      :      250 deg F
Type      :      Medium Duty
  • Metal nameplate riveted to the housing allows for easy identification even after years of operation
  • High temperature synthetic grease
  • Alemite fitting lubrication
  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120 deg spacing setscrew locking on both sides of ball path with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
  • Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
