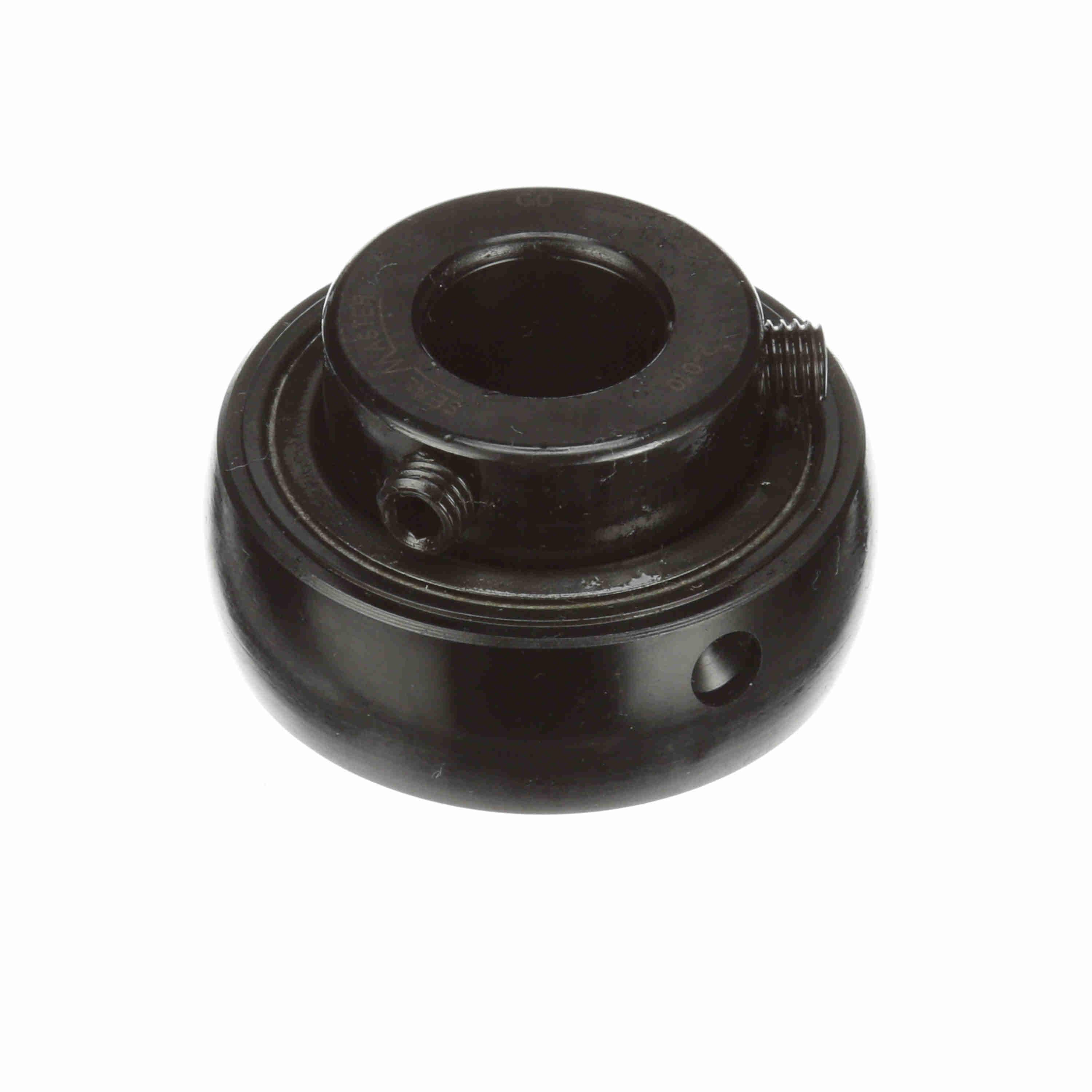

Sealmaster® 700007 MOR2-010

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

Sealmaster® Ball Bearing Insert, Non-Expansion Standard Duty Straight Bore, 5/8 in Bore, 1.8504 in OD, 1-7/32 in Width, Double Seal Closure, 2611 lb Dynamic/1444 lb Static Load, Steel Bearing, Felt Seal, Brass Cage, 7300 rpm Maximum, -20 to 220 deg F, Black Oxide Coated

• Wide outer ring
• Lock pin and dimple system
• The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• Zone hardened inner race
• Land riding retainer
• Lithium complex NLGI #2 grease with an EP additive

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_RB10_Manual.pdf
