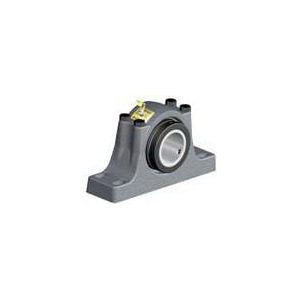

Sealmaster® 554435 MORRPBXT4154

The Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive type E bearings. The exclusive features include unitized replaceable inserts, self-aligning capability and split housing. They also include the Sealmaster® alignment pin. This provides a direct path for lubrication into the bearing and helps to prevent outer race rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provide a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric. They provide a wide variety of housing, sealing and lubrication options.

Sealmaster® Pillow Block Roller Bearing Unit, Standard-Duty, Series: RPBXT, 4-15/16 in Bore, 15-5/8 to 17-3/8 in Bolt Center-to-Center Length, 6 in Base to Bore Centerline, 20-1/8 in Overall Length, 7-1/4 in Overall Width, 11-1/2 in Overall Height, Four-Bolt Base Mounting, Round/Tapered Bore, 6 in Base Width, Double Set Screw Locking Device, Felt Seal, Non-Expansion (Fixed) Expansion, 35520 lb Dynamic Load, 250 deg F, Cast Iron, Uncoated

• Replaceable cartridge insert
• Positive lubrication system
• Collar mount system
• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy 4-bolt split cast iron housing

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_554420_Specification_Sheet.pdf
