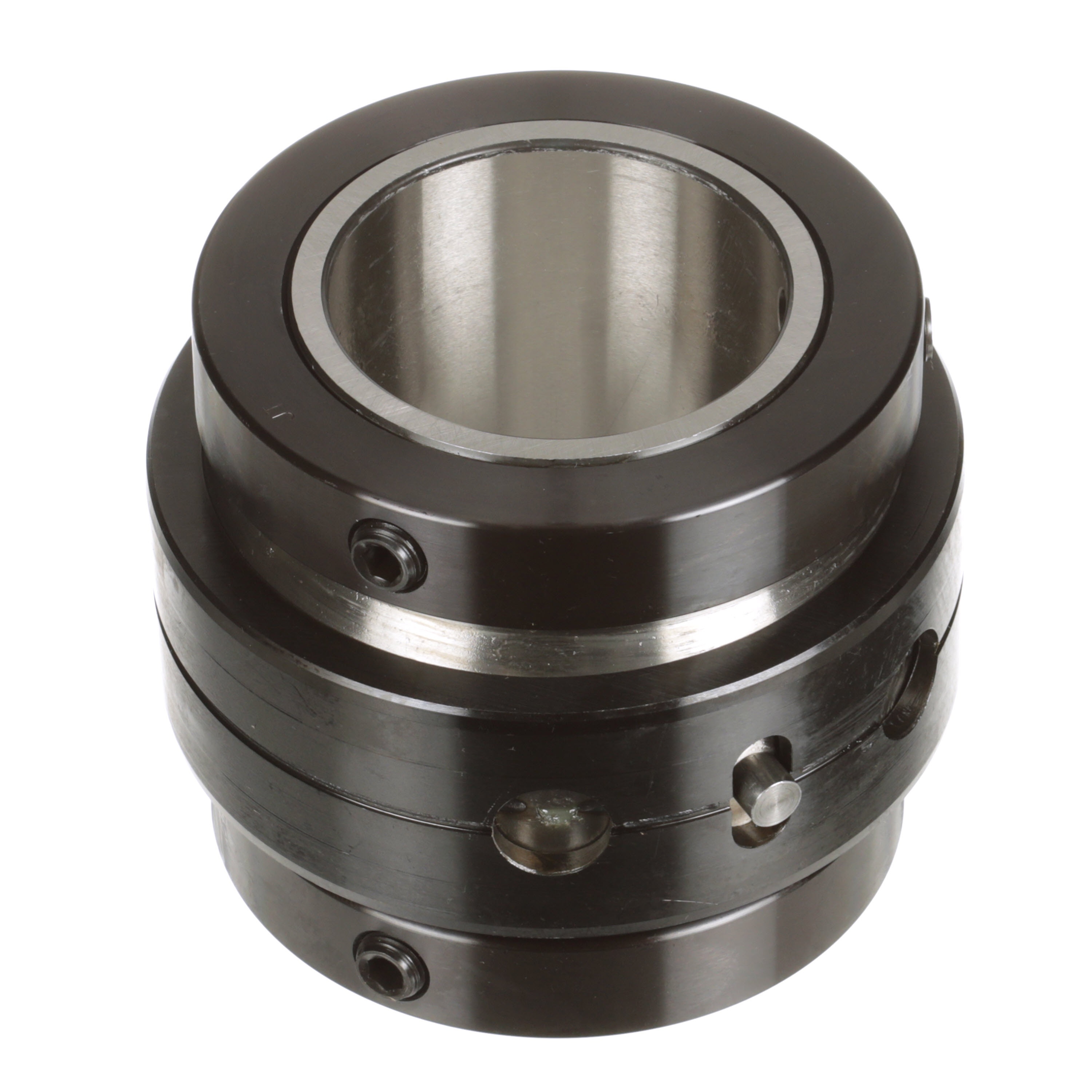

Sealmaster® 550833 MORERCI215C
Sealmaster® 550833 Expansion Straight Bore Replacement Cartridge Insert, 2.938 in Dia Bore, 5.374 in OD, 4-1/2 in W, 9630 lb Dynamic Load
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORERCI215C
- Alt Part Number: ERCI 215C
- MPN: 550833
- UPC: 662288481379
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The heart of the RPB is the unitized, self-aligning cartridge insert with integral seals and double locking collars. The replaceable cartridge insert can accommodate +/- 3 deg static misalignment and is factory sealed and lubricated. The cartridges fit all housing styles and are field replaceable for quick change out. RCI outer races are black oxide treated.
Sealmaster® Replacement Cartridge Insert, Expansion Straight Bore, Series: ERCI, 2.938 in Bore, 5.374 in OD, 4-1/2 in Width, 9630 lb Dynamic Load, 52100 Steel Bearing, Rubber Seal, 1750 rpm Maximum, 225 deg F, Black Oxide Coated
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 2.938 in |
| Finish | : | Black Oxide Coated |
| Load Capacity | : | 9630 lb Dynamic |
| Maximum Speed | : | 1750 rpm |
| Outside Diameter | : | 5.374 in |
| Seal Material | : | Rubber |
| Series | : | ERCI |
| Temperature Rating | : | 225 deg F |
| Type | : | Expansion Straight Bore |
| Width | : | 4-1/2 in |
- Race-mounted contact flinger seal
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
