Sealmaster® 550811 MORERPB4004

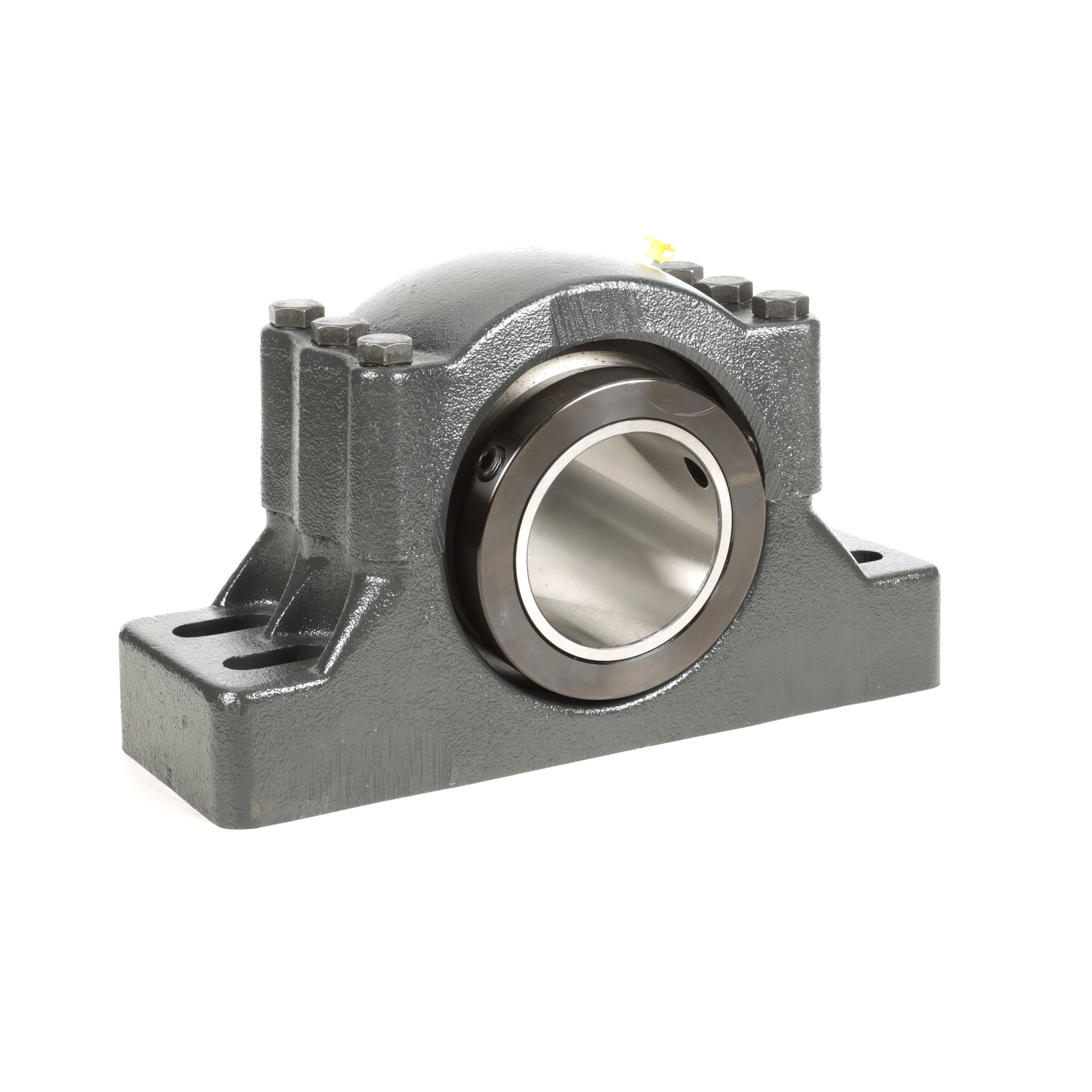

Sealmaster® 550811 ERPB Standard-Duty Pillow Block Roller Bearing Unit With Seal Flinger, 4 in Dia Bore, 11 to 13 in L Bolt Center-to-Center, 4-1/4 in Base to Bore Centerline, 15-1/4 in OAL x 8-7/8 in OAH
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORERPB4004
- Alt Part Number: ERPB-400-4
- MPN: 550811
- UPC: 662288481232
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive type E bearings. The exclusive features include unitized replaceable inserts, self-aligning capability and split housing. They also include the Sealmaster® alignment pin. This provides a direct path for lubrication into the bearing and helps to prevent outer race rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provide a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric. They provide a wide variety of housing, sealing and lubrication options.
Sealmaster® Pillow Block Roller Bearing Unit, Standard-Duty, Series: ERPB, 4 in Bore, 11 to 13 in Bolt Center-to-Center Length, 4-1/4 in Base to Bore Centerline, 15-1/4 in Overall Length, 6-1/4 in Overall Width, 8-7/8 in Overall Height, Four-Bolt Base Mounting, Round/Tapered Bore, 5-33/64 in Base Width, Double Set Screw Locking Device, Felt Seal, Expansion Expansion, 20980 lb Dynamic Load, 250 deg F, Cast Iron, Uncoated
| Base Width | : | 5-33/64 in |
| Base to Bore Centerline | : | 4-1/4 in |
| Bolt Center-to-Center Length | : | 11 to 13 in |
| Bore Diameter | : | 4 in |
| Bore Type | : | Round/Tapered |
| Expansion Type | : | Expansion |
| Finish | : | Uncoated |
| Load Capacity | : | 20980 lb Dynamic |
| Locking Device | : | Double Set Screw |
| Material | : | Cast Iron |
| Mounting Type | : | Four-Bolt Base |
| Overall Height | : | 8-7/8 in |
| Overall Length | : | 15-1/4 in |
| Overall Width | : | 6-1/4 in |
| Seal Type | : | Felt |
| Series | : | ERPB |
| Temperature Rating | : | 250 deg F |
| Type | : | Standard-Duty |
- Replaceable cartridge insert
- Positive lubrication system
- Collar mount system
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 4-bolt split cast iron housing
Specification Sheet
